There are multiple original radio options in the Seat Ibiza Mk4 (6J), which option is the original fitted system?

Seat Ibiza mk4

Production years 2008 – 2014

The Seat Ibiza mk4 was released in 2008, in 2014 the car had a facelift. The facelift included an update head unit which had the hazard button and the passenger airbag light moved from the button cluster by the gear stick to the radio face. Because of this special parts are required for the 2014 onward model when changing the head unit.

Below are pictures of the earlier model dashboard and the facelifted dashboard with the buttons in the new positions.

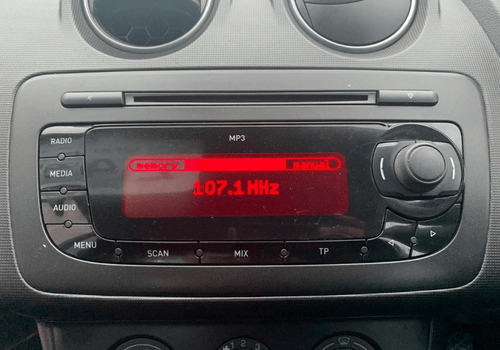

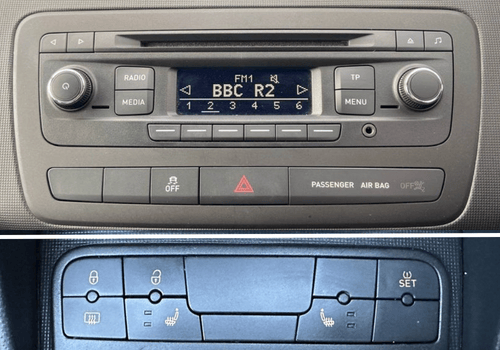

The older model to the left has the hazard, ESP and airbag buttons on the button cluster down by the gear stick. The facelifted model to the right has the hazard, ESP and airbag buttons built into the radio.

In order to fit a new head unit into the facelift model, a button panel from an earlier model with the corresponding buttons is required. Our fascia fitting kit includes the harness adapter to extend the connection to the new button panel.

Depending on the specification of the car, there are various different button panel combinations available. A new button panel is required to combine the existing button panel by the gear stick with the buttons on the radio panel.

NOTE: The AUX connection is not relevant as this only works with the original radio.
