BLAM LIVE L165A - ACOUSTIC 165mm (6.5 inch) 140W High-fidelity 2-Channel component speaker system

BL-L165-A
Price: £237.50 (£285.00 inc VAT)

With its high-end design, the LIVE L165A - ACOUSTIC speaker system from BLAM system set specially designed to provide the best sound quality even in minimal door space. Unparalleled technology and excellent features characterize this speaker set. With a light and rigid composite diaphragm combined with a 28 mm diameter coil gives it dynamism and detail that brings the recording to life without sacrificing sound quality. This system consists of two 165 mm (6.5”) woofers, two 25 mm (1”) soft dome tweeters, two 12 db/octave low-pass audiophile crossovers and two 12 dB/octave high-pass audiophile crossovers, adapted for bi-amplification.

With its high-end design, the LIVE L165A - ACOUSTIC speaker system from BLAM system set specially designed to provide the best sound quality even in minimal door space. Unparalleled technology and excellent features characterize this speaker set. With a light and rigid composite diaphragm combined with a 28 mm diameter coil gives it dynamism and detail that brings the recording to life without sacrificing sound quality. This system consists of two 165 mm (6.5”) woofers, two 25 mm (1”) soft dome tweeters, two 12 db/octave low-pass audiophile crossovers and two 12 dB/octave high-pass audiophile crossovers, adapted for bi-amplification.

Product Features
  • 2-channel high-fidelity system
  • 165 mm woofer
  • Max Power 140 W
  • Nominal Power 70 W
  • Frequency response 55 Hz – 25 kHz
  • Sensitivity 92 dB
  • Impedance 2 Ω

Composition

L165A HIGH-FIDELITY WOOFER
  • 165 mm (6.5″) woofer
  • Max power 140 W
  • Nominal power 70 W
  • Frequency response 55 Hz – 9 kHz
  • Sensitivity 92.8 dB
  • Impedance 2 Ω
  • Moulded and machined aluminium basket – Epoxy resin and fiberglass membrane – Butyl peripheral surround – “Conex” long-life spider – 28 mm voice coil on kapton former – 80 mm x 15 mm magnetic motor – 5 mm thick magnetic circuit

LT25 HIGH-QUALITY TWEETER
  • High quality 25 mm soft dome tweeter
  • Maximum power 100 W
  • Nominal power 15 W
  • Frequency response 2.5 kHz – 25 kHz
  • Sensitivity 91.6 dB
  • Impedance 3 Ω
  • High-efficiency N38 neodymium motor

 BFW02 HIGH QUALITY CROSSOVER
  • Low pass 12 dB/octave

 BFT02 HIGH QUALITY CROSSOVER
  • High pass 12 dB/octave
  • Tweeter level adjustable to +3 dB, 0 dB or attenuated to -3 dB

Supplied Accessories
  • Mounting screws
  • Mounting accessories for tweeters
  • User manual

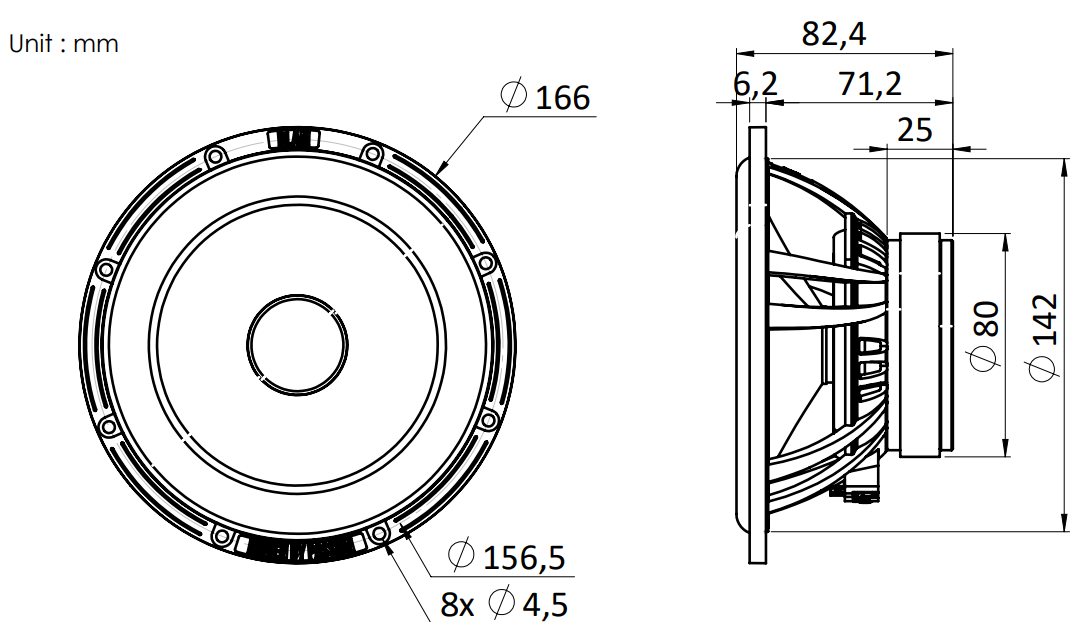

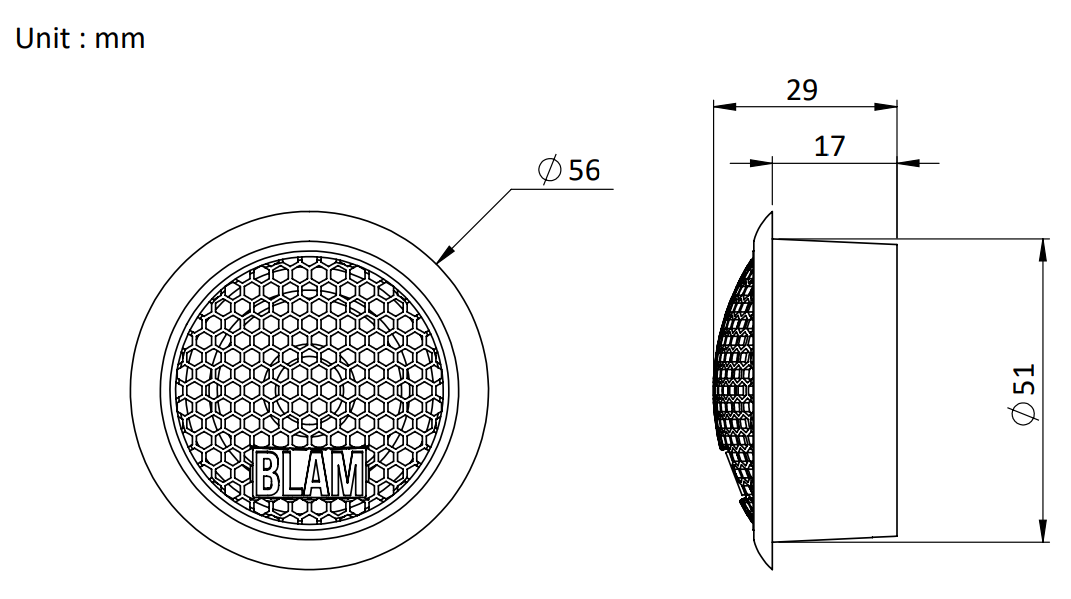

Dimensions

You might also require (Sold Separately)

  • Trim Panel Tool Set A must have for any installer who has to remove plastic trims, to avoid damage to the delicate finishes on both interior and exterior dashboards and panels. These trim tools are made from a nylon with a non-damaging finish to avoid cosmetic blemishes to the interior or exterior of your vehicle from removing panels and trim.
  • Speaker Grilles - If your car speakers are exposed then use speaker our 165mm Grilles for a more discrete appearance and offer a form of protection to kicks and knocks.
  • Sound Deadening - Sound deadening can vastly enhance your vehicles sound upgrade by reducing sound vibration, eliminating outside road noise and creating a more acoustic environment, magnifying the sound quality of your system.
  • Sound Deadening Tool - Professional sound deadening roller tool designed to allow even pressure when applying sound deadening on the surface of the car, minimising air bubbles and helping to achieve the best possible adhesion.
  • Speaker Baffles - Designed to fit any 165mm speaker, these adjustable speaker baffles creates a flexible seal around the back of the speakers, protecting them from water that gets inside doors and interior panels. Additionally it provides a barrier stopping interference between sound from the front and rear of the speakers from having a negative effect on sound quality.
  • Led Headlamp Torch - Gives great visibility when working on a vehicle in the workshop, great for locating those dark hard-to-see locations during an installation.
  • Disposable Gloves - Offer great protection for your hands during installations. Also trusted across various sectors, including automotive, agriculture, healthcare, food and catering, manufacturing, and more.

Brand: BLAM

Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Any Car - Any Car (No year)
Ford - B-Max (B232) (2012 - 2018)
Ford - C-MAX 1st Gen (C214) (2003 - 2010)
Ford - EcoSport 2nd Gen (2013 - 2019)
Ford - Edge (CD539) (2015 - 2021)
Nissan - NV200 (2010 - 2019)
