InCarTec Products > SPEAKERS

BLAM Live LFR52 50mm (2 inch) High resolution 50w full-range car audio speakers (PAIR)

BL-LFR52
Price: £108.33 (£130.00 inc VAT)

With a very linear frequency response and extended high end, the LFR52 from BLAMs LIVE range reproduces music with incredible resolution that will make you want to rediscover all your favourite songs. The BLAM LFR52 can be used either as a midrange driver in a three-way system or as a replacement for a tweeter in a two-way system, increasing the resolution of your system to more accurately recreate acoustic instruments and vocal emotion for a more natural and captivating result.

PLEASE NOTE: Depending on the cut-off frequency, 25W RMS is filtered above 300 Hz at 12 dB/octave

The components and equipment of the LIVE series are designed to intuitively convey the precise nuances of a live concert experience. LIVE systems create a perfectly balanced sound atmosphere, making you sure to want to listen to many songs from your music collection again. The new BLAM LFR52 two-inch (50 mm) full-range speakers are designed to expand the capabilities of speaker systems Live series.

With a very linear frequency response and extended high end, the LFR52 from BLAMs LIVE range reproduces music with incredible resolution that will make you want to rediscover all your favourite songs. The BLAM LFR52 can be used either as a midrange driver in a three-way system or as a replacement for a tweeter in a two-way system, increasing the resolution of your system to more accurately recreate acoustic instruments and vocal emotion for a more natural and captivating result.

PLEASE NOTE: Depending on the cut-off frequency, 25W RMS is filtered above 300 Hz at 12 dB/octave


Composition
  • 50 mm (2″) speaker
  • Max power 50 W / Nominal power 25 W
  • Frequency response 200 Hz – 45 kHz
  • Sensitivity 85 dB – Impedance 4 Ω
  • Original BLAM cast aluminium basket – Fiberglass and epoxy resin composite membrane – Butyl perimeter surround – Long life “Nomex” spider – 20 mm voice coil on aluminium former – Ultra powerful motor with 40 mm x 5 mm neodymium ring – T-yoke equipped with a copper Faraday ring
  • Optimized to operate in a sealed volume of 50 mL to 500 mL
  • Recommended minimum cut-off frequency 250 Hz at 12 dB/octave


    Technical Specifications
    • Component Full-range
    • Max power 50 W
    • Nominal power 25 W
    • Impedance 4 Ω
    • Freq. Response 200 Hz - 45 KHz
    • Sensitivity (2,83V/1m) 86 dB
    • Magnet Neodymium
    • Magnet size Ø x h 40 x 6 mm 1.575‘’x 0.236 ‘’
    • Total driver displacement 0.3 l 0.011 cf
    • Weight of one component 0.165 kg 0.364 lb
    • Voice coil Ø 20 mm 0.803“
    • Voice coil height 3.5 mm 0.138“
    • Cone Aluminium


    Technical Parameters
    • effective Ø (d) 47 mm
    • Sd 17.35 cm2
    • Xmax -1 mm
    • Re 3,72 Ω
    • Fs 135.88 Hz
    • Le 16.13 µH @1 kHz
    • L2 68.02 µH @10 kHz
    • Vas 0.39 L
    • Mms 1.50 g
    • Cms 0.916015 m/N
    • BL 2.41 Tm
    • Qts 0.64
    • Qes 0.82
    • Qms 2.85
    • Sensitivity (dB/W/m) 82.6 dB


    Supplied accessories:

    • Mounting screws
    • Protection grill
    • User manual
    • ABS angled sealed enclosure (pair)
    • 100 µF capacitor (6 dB/octave 400 Hz cut-off frequency)

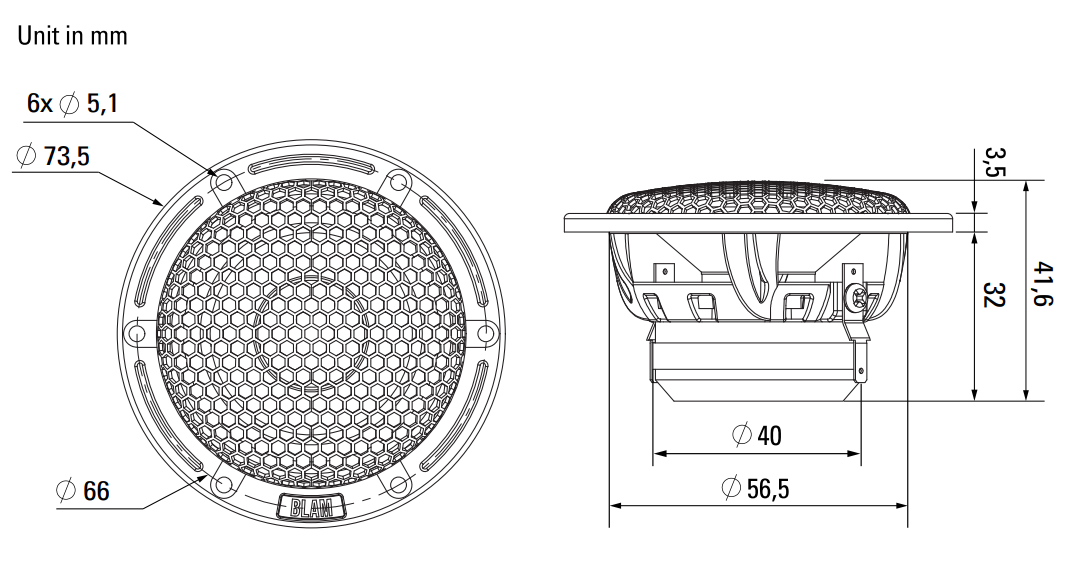

    Dimensions


    Brand: BLAM

    Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
