InCarTec Products > SPEAKERS

BLAM LIVE LM80 80mm (3 inch) High End 100W mid-range car audio speakers (PAIR)

BL-LM80
Price: £99.16 (£118.99 inc VAT)

The LIVE LM80 is the latest 3 Inch (80mm) mid-range speaker from BLAM which boasts impressive technical specifications. The maximum output is 100 W with a nominal power of 25 W and an impedance of 3 ohms. Its frequency response ranges from 100 Hz to 25 kHz and it has a sensitivity of 92 dB at 2.83 V / 1 m. With a ferrite magnet, a magnet size of 55 x 10 mm, a voice coil of 20 mm diameter and 6 mm height and a cone made of carbon, this midrange driver sets new standards in the industry. With a very linear frequency response and extended high frequency range, the LM80 reproduces music with an incredible resolution that will make you want to rediscover all your favourite songs.

The LIVE LM80 is the latest 3 Inch (80mm) mid-range speaker from BLAM which boasts impressive technical specifications. The maximum output is 100 W with a nominal power of 25 W and an impedance of 3 ohms. Its frequency response ranges from 100 Hz to 25 kHz and it has a sensitivity of 92 dB at 2.83 V / 1 m. With a ferrite magnet, a magnet size of 55 x 10 mm, a voice coil of 20 mm diameter and 6 mm height and a cone made of carbon, this midrange driver sets new standards in the industry. With a very linear frequency response and extended high frequency range, the LM80 reproduces music with an incredible resolution that will make you want to rediscover all your favourite songs.

PLEASE NOTE: Depending on the cut-off frequency, 25W RMS is filtered above 300 Hz at 12 dB/octave


Composition
  • Max Power 100 W
  • Nominal Power 25 W*.
  • Frequency response 100 Hz – 25 kHz
  • Sensitivity 87.6 dB
  • Impedance 3 Ω
  • Mounting depth 45.5 mm (1.8″)
  • Cast aluminium basket – Fiberglass and epoxy resin composite membrane – Butyl perimeter surround – “Conex” long life spider – 20 mm voice coil on TIL former – 55 mm x 10 mm ferrite magnet
  • Optimized to operate in a sealed volume of 2 L to 30 L.
  • Recommended minimum cut-off frequency 300 Hz 12 dB/octave

Technical Specifications
  • Component: Midrange
  • Max power: 100 W
  • Nominal power: 25 W
  • Impedance: 3 Ω
  • Freq. Response: 100 Hz - 25 KHz
  • Sensitivity: (2,83V/1m) 87.6 dB
  • Magnet: Ferrite
  • Magnet size Ø x h: 55 x 10 mm 2.165‘’x 0.394 ‘’
  • Total driver displacement: 0.0619 l 0.002 cf
  • Weight of one component: 0.323 kg 0.712 lb
  • Voice coil Ø: 20 mm 0.803“
  • Voice coil height: 5.9 mm 0.232“
  • Cone: Glassfiber


Technical Parameters
  • effective Ø (d) 61 mm
  • Sd 29.22 cm2
  • Xmax 1 mm
  • Re 3 Ω
  • Fs 135.18 Hz
  • Le 63.70 µH @ 1 kHz
  • L2 107.65 µH @10 kHz
  • Vas 0.71 L
  • Mms 2.33 g
  • Cms 0.000593 m/N
  • BL 2.17 Tm
  • Qts 1.04
  • Qes 1.26
  • Qms 5.90
  • Sensitivity (dB/W/m) 83.3 dB

Supplied accessories :
  • Mounting screws
  • Protection grill
  • User manual

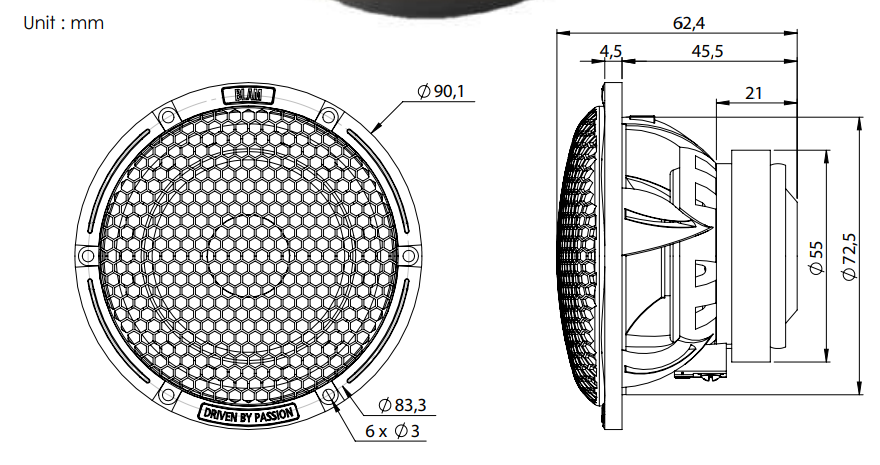

Dimensions

Brand: BLAM

Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Any Car - Any Car (No year)
