BLAM LIVE LFR80 80mm (3 inch) High End 100w full-range car audio speakers (PAIR)

BL-LFR80
Price: £165.83 (£199.00 inc VAT)

The LIVE LFR80 is a 80mm (3 Inch) midrange driver from BLAM. The LFR80 is full of first-class technology, such as efficient, lightweight neodymium magnets and fiberglass composite cones that produce a unique sound. With a maximum output of 100 W and a wide frequency response of 200 Hz to 35 KHz, it takes you on an audiophile journey. The whole thing is rounded off by a soft dome tweeter that combines everything into a harmonious sound. Experience your music in a new way with the impressive performance and quality of the LFR80.

PLEASE NOTE: Depending on the cut-off frequency, 25W RMS is filtered above 300 Hz at 12 dB/octave

The components and equipment of the BLAM LIVE series are designed to intuitively convey the precise nuances of a live concert experience. LIVE systems create a perfectly balanced sound atmosphere, making you sure to want to listen to many songs from your music collection again.

The LIVE LFR80 is a 80mm (3 Inch) midrange driver from BLAM. The LFR80 is full of first-class technology, such as efficient, lightweight neodymium magnets and fiberglass composite cones that produce a unique sound. With a maximum output of 100 W and a wide frequency response of 200 Hz to 35 KHz, it takes you on an audiophile journey. The whole thing is rounded off by a soft dome tweeter that combines everything into a harmonious sound. Experience your music in a new way with the impressive performance and quality of the LFR80.

PLEASE NOTE: Depending on the cut-off frequency, 25W RMS is filtered above 300 Hz at 12 dB/octave


Composition
  • Max Power 100 W – Nominal Power 25 W*.
  • Frequency response 150 Hz – 37 kHz
  • Sensitivity 91 dB
  • Impedance 3 Ω
  • Installation depth 45 mm (1.8″)
  • Moulded aluminium basket – Fiberglass and epoxy resin composite membrane – Peripheral butyl surround – Long life spider “Conex” – 20 mm voice coil on TIL former – 50 mm x 10 mm neodymium motor
  • Optimized to operate in a sealed volume of 0.3 L to 0.5 L
  • Recommended minimum cut-off frequency 250 Hz 12 dB/octave

Technical Specifications
  • Component: Midrange
  • Max power: 100 W
  • Nominal power: 25 W
  • Impedance: 3 Ω
  • Freq. Response: 150 Hz - 37 KHz
  • Sensitivity: (2,83V/1m) 91 dB
  • Magnet: Neodymium
  • Magnet size Ø x h: 50 x 10 mm 1.969‘’x 0.394  ‘’
  • Total driver displacement: 0.0574 l 0.002 cf
  • Weight of one component: 0.444 kg 0.979 lb
  • Voice coil Ø: 20 mm 0.803“
  • Voice coil height: 5.9 mm 0.232“
  • Cone: Glassfiber


Technical Parameters
  • effective Ø (d) 61 mm
  • Sd 29.22 cm2
  • Xmax 1 mm
  • Re 3 Ω
  • Fs 151.75 Hz
  • Le 16.69 µH @1 kHz
  • L2 117.18 µH @10 kHz
  • Vas 0.53 L
  • Mms 2.49 g
  • Cms 0.000441 m/N
  • BL 3.42 Tm
  • Qts 0.52
  • Qes 0.61
  • Qms 3.47
  • Sensitivity (dB/W/m) 86.7 dB

Supplied accessories :
  • Mounting screws
  • Protection grill
  • User manual

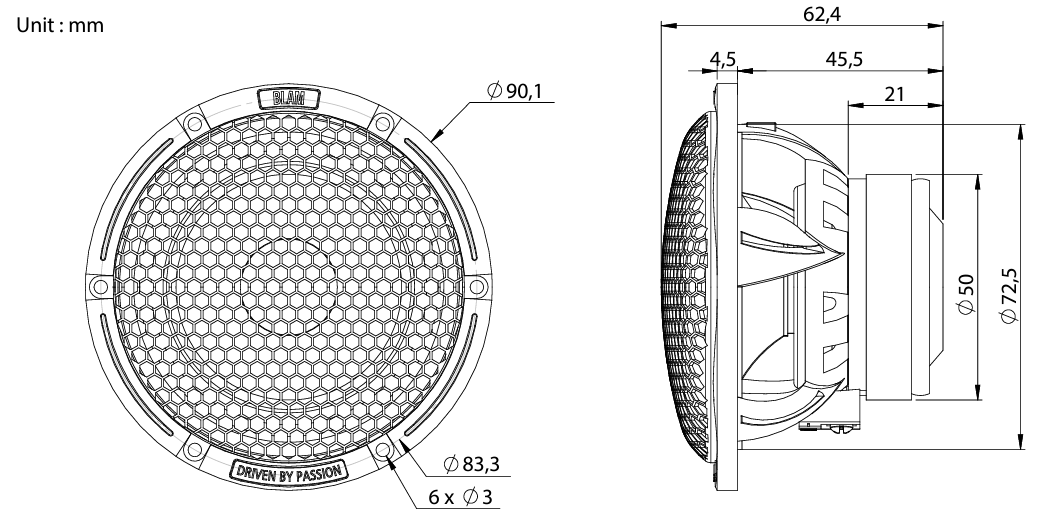

Dimensions

Brand: BLAM

Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Any Car - Any Car (No year)
