The Relax 570 RC by BLAM is a 5 x 7 inch high-performance stand-alone car audio coaxial speaker system set at an affordable price range.
The 570RC speakers are equipped with a high quality cellulose pulp membrane associated with a butyl peripheral surround. The generous dimensions of the motor (85 x 17 mm) contribute to an optimal QTS for powerful and controlled bass. The tweeter is equipped with a neodymium motor, a soft dome and a 20 mm coil with CCAW (Copper Aluminium Alloy Wire)
Replace your mediocre factory-installed speakers and relax to your favourite tunes. The result of 25 years of experience, BLAM French Sound systems are designed to produce incredible sound for the price of a standard product. With or without amplifier, thanks to their high efficiency, they provide a clear and powerful sound that will transform your trips into pure moments of pleasure
Product specifications
- 2 x 127 x 178 mm (5” x 7”) speakers
- 2 x 20 mm coaxial soft-dome tweeters with integrated 6 dB/octave crossovers.
- Speaker 127 x 178 mm (5” x 7”)
- Maximum power 120 W
- Nominal power 60 W
- Frequency response 75 Hz – 28 kHz
- Sensitivity 94 dB
- Impedance 2 Ω
Characteristics
570 RC WOOFER- Speaker 127 x 178 mm (5” x 7”)
- Max power 120 W
- Nominal power 60 W
- Steel basket – High quality cellulose pulp diaphragm
- Butyl perimeter surround – Long life ”Conex” spider
- 25 mm (1”) coil – 85 mm x 17 mm magnetic motor
COAXIAL TWEETER
- High-quality 20 mm soft-dome tweeter
- Maximum power 100 W / Rated power 10 W
- Frequency response 2.5 kHz – 25 kHz
- Sensitivity 90 dB – Impedance 3 Ω
- High-efficiency neodymium motor – High-quality soft dome – Ferrofluid
- Integrated crossover 6 dB/octave

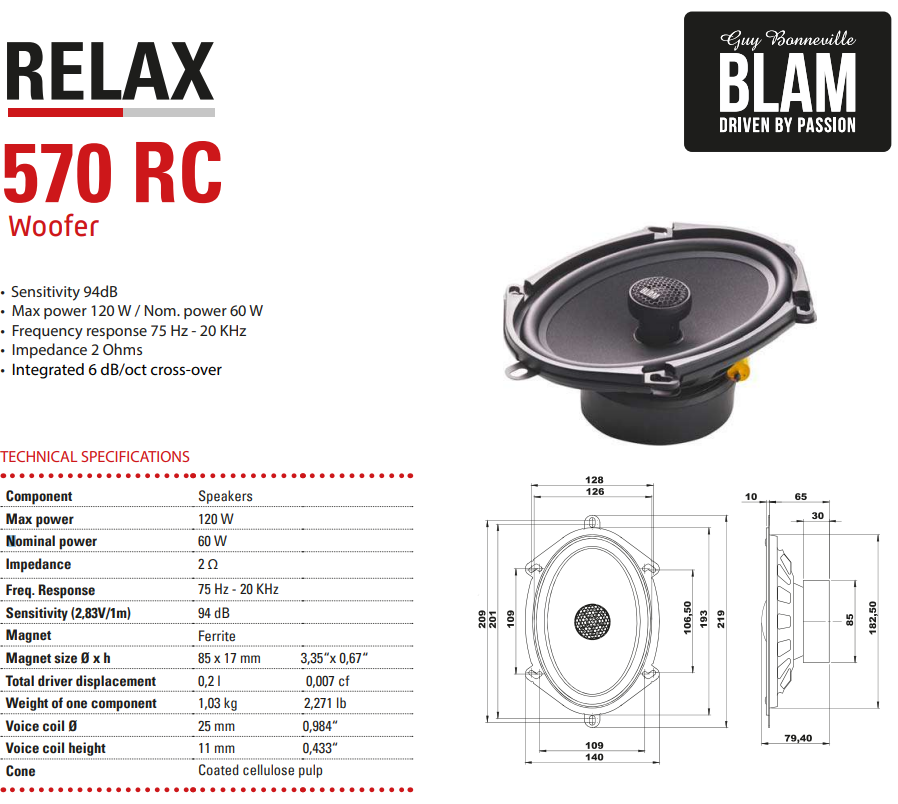

Technical Specifications
- Component Speakers
- Max power 120 W
- Nominal power 60 W
- Impedance 2 Ω
- Freq. Response 75 Hz - 20 KHz
- Sensitivity (2,83V/1m) 94 dB
- Magnet Ferrite
- Magnet size Ø x h 85 x 17 mm 3,35“x 0,67“
- Total driver displacement 0,2 l 0,007 cf
- Weight of one component 1,03 kg 2,271 lb
- Voice coil Ø 25 mm 0,984“
- Voice coil height 11 mm 0,433“
- Cone Coated cellulose pulp
Technical Parameters
- effective Ø (d) 135,5 mm
- Sd 144,20 cm²
- Xmax 3 mm
- Re 2,4 Ω
- Fs 73,81 Hz
- Le 95,89 µH @ 1 kHz
- Le 196,90 µH @10 kHz
- Vas 11,36 L
- Mms 11,95 g
- Cms 0,000389 m/N
- BL 4,10 Tm
- Qts 0,72
- Qes 0,79
- Qms 7,45
- Sensitivity (dB/W/m) 89,5 dB

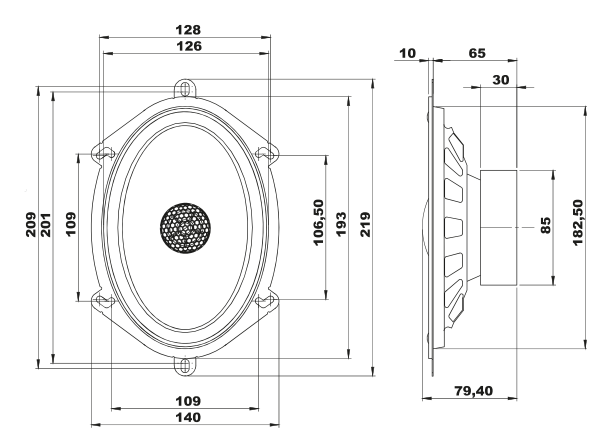

Dimensions
Technical Specifications Sheets
Brand: BLAM
Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Alfa Romeo - GTV (Type 916)* (1995 - 2005)
Alfa Romeo - GTV Spider (Type 916)* (1996 - 2004)
Jaguar - S-Type (2000 - 2008)
Kia - Shuma 2nd Gen (1999 - 2002 )
Kia - Shuma 2nd Gen Facelift (II) (2002 - 2004 )
Mazda - Bongo Friendee (1995 - 2005)
Mazda - MX-5 (2nd Gen) NB (1999 - 2005)
Mazda - MX-5 (3rd Gen) NC (2005 - 2009)
Mazda - MX-5 (3rd Gen) NC Facelift (2009 - 2015)
Mazda - RX-7 (2nd Gen) FC (1986 - 1991)
