BMWs are very challenging to equip with new audio upgrades since they have very shallow subwoofers under the front seats.
The BM 200 WN hi-performance BMW-dedicated 200mm (8 inch) extra-flat underseat subwoofers from BLAM are custom made to make the installation process faster and make the sound image more precise and clear.
The BM200WN woofer has been designed specifically to mount in the original location. It replaces very advantageously the 165 mm woofers installed as standard in many models.
Compatible with the BMW Series 1/3/5/6/7 and X1/3/5/6.
Technical Features
- Subwoofer 200 mm
- Max power 120 W
- Nominal power 60W
- Frequency response 40 Hz to 1 kHz
- Sensitivity 91 dB
- Impedance 2 Ω
Characteristics
- Steel salad bowl
- Lightweight and rigid fiberglass membrane
- Foam suspension
- Spider long life “Conex
- 35 mm coil on aluminum support
- High-powered neodymium motor 34.5 x 7 mm

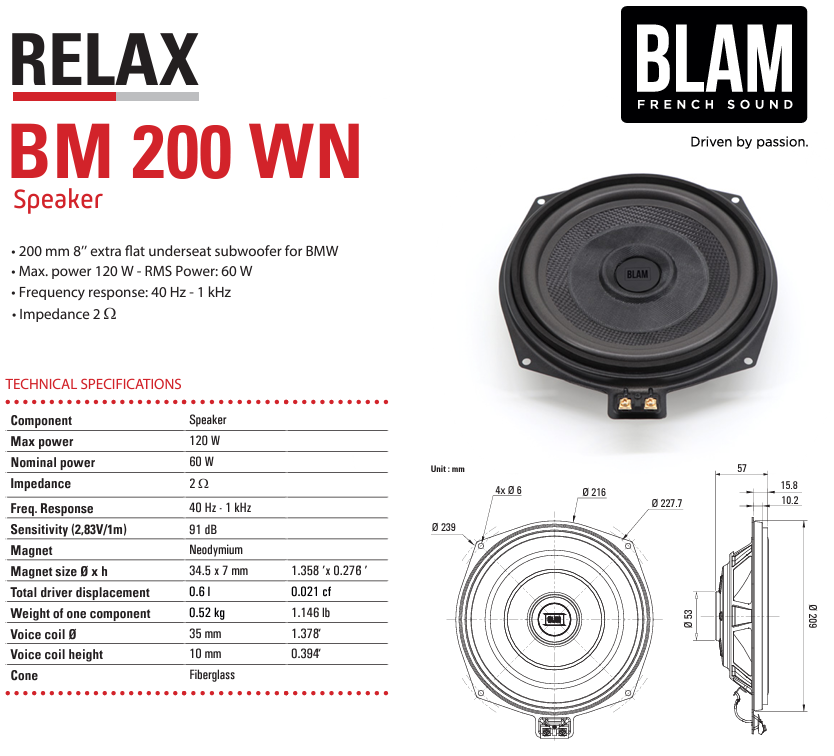

Technical Specifications
- Component: Speaker
- Max power: 120 W
- Nominal power: 60 W
- Impedance: 2 Ω
- Freq. Response: 40 Hz - 1 kHz
- Sensitivity (2,83V/1m): 91 dB
- Magnet: Neodymium
- Magnet size Ø x h: 34.5 x 7 mm 1.358‘’x 0.276‘’
- Total driver displacement: 0.6 l 0.021 cf
- Weight of one component: 0.52 kg 1.146 lb
- Voice coil Ø: 35 mm 1.378“
- Voice coil height: 10 mm 0.394“
- Cone: Fiberglass
Technical Parameters
- effective Ø (d) 167 mm
- Sd 219.04 cm²
- Xmax 2 mm
- Re 2.0 Ω
- Fs 51.71 Hz
- Le 236.69 µH @ 1 kHz
- L2 385.02 µH @10 kHz
- Vas 17.75 L
- Mms 35.96 g
- Cms 0.263413 m/N
- BL 4.31 Tm
- Qts 1.08
- Qes 1.26
- Qms 7.53
- Sensitivity (dB/ W / m) 85 dB

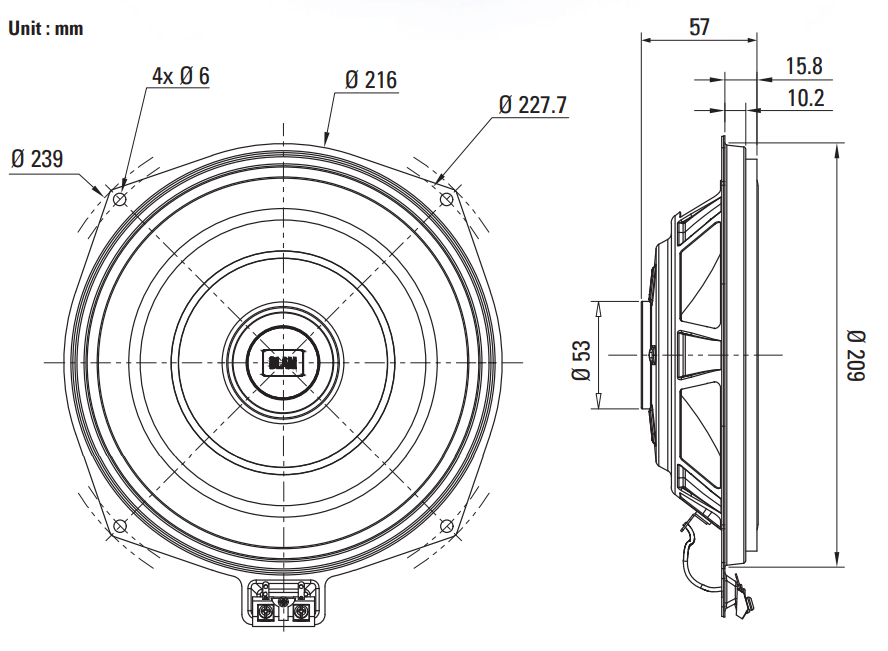

Dimensions
Brand: BLAM
Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
BMW - 1 series (E81/E82/E87/E88) (2004 - 2010 )
BMW - 1 Series (F20/F21)* (2011 - 2019)
BMW - 3 Series (F30/F31/F34) (2012 - 2019)
BMW - 5 series GT (F07)* (2010 - 2016)
BMW - Z4 (E89)* (2009 - 2016)
