BLAM SIGNATURE FRS 3N50+ High Fidelity 80mm (3 inch) full range speakers (SPECIAL ORDER PRODUCT)

PLEASE NOTE: This is a special product order which we don't stock. Please email our sales team for availability

Experience top quality with the SIGNATURE Menu FRS 3N50+ from BLAM. This 3 Inch (80mm) midrange speaker offers the highest technology for audio lovers. With a maximum output of 100W and a nominal output of 25W, it offers first-class audio quality. The product features range from a frequency response of 200 Hz - 30 kHz to a sensitivity of 91 dB. From the die-cast aluminium basket to the ultra-rigid carbon fiber cone, all elements are designed to give you an enhanced sound experience. Discover the versatility and quality of the FRS 3N50+ and immerse yourself in a new dimension of sound.

Product Features

• 3 Inch (80mm) full range speaker

• Max power 100 W
• Nominal power 25 W
• Frequency response 200 Hz – 30 kHz
• Sensitivity 91 dB
• Impedance 3 Ω
• Mounting depth 44.5 mm

Technical Specifications

• Component Full-range

• Max power 100 W
• Nominal power 25 W
• Impedance 3 Ω
• Freq. Response 200 Hz - 30 KHz
• Sensitivity (2,83V/1m) 91.8 dB
• Magnet Neodymium
• Magnet size Ø x h 50 x 9 mm 1.969‘’x 0.354 ‘’
• Total driver displacement 0.053 l 0.002 cf
• Weight of one component 0.298 kg 0.657 lb
• Voice coil Ø 20 mm 0.787“
• Voice coil height 6 mm 0.236“
• Cone Carbon fiber

Technical Parameters

• effective Ø (d) 61 mm

• Sd 29,22 cm2
• Xmax 1 mm
• Re 3.3 Ω
• Fs 137.62 Hz
• Le 19.90 µH @1 kHz
• L2 256.66 µH @10 kHz
• Vas 0.82 L
• Mms 1.96 g
• Cms 0.000681 m/N
• BL 3.32 Tm
• Qts 0.47
• Qes 0.52
• Qms 5.04
• Sensitivity (dB/W/m) 88.1 dB

Technical Specifications Sheet

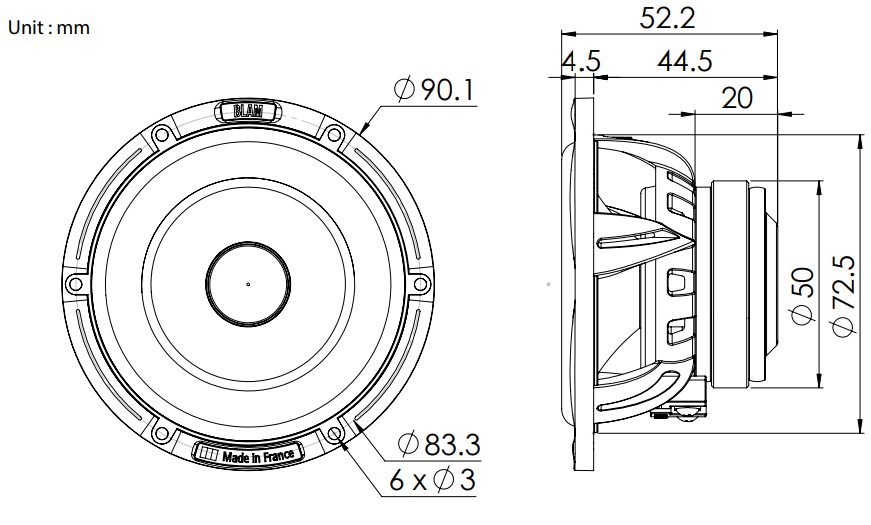

Dimensions
