BLAM SIGNATURE S 200.300 200mm (8 inch) 300W 3-Way (2+1) High Power component speaker system

PLEASE NOTE: This is a special product order which we don't stock. Please email our sales team for availability

Discover the SIGNATURE S 200.300 from BLAM, a first-class 3-way high power component speaker set consisting of two 200 mm (8 Inch) carbon-fiber speakers, two 80 mm (3 Inch) midrange drivers, two 25 mm (1 Inch) high resolution soft dome tweeters and two high quality external crossovers. With technical features such as 300w maximum power, 50 Hz – 3.8 kHz frequency response and a mounting depth of 67mm, this speaker set offers outstanding audio performance and is a perfect choice if you are looking for remarkable sound quality and long-lasting performance.

This kit is composed of two 200 mm (8″) woofers, two 80 mm (3″) midrange drivers, two 25 mm (1″) soft-dome tweeters and two 6/12/12 dB/octave external crossovers with adjustable tweeter levels: +3 dB, 0 dB or -3 dB.

Composition

WS8.100 HIGH POWER WOOFER

• 200 mm woofer
• Mounting depth 67 mm
• Maximum power 300 W
• Nominal power 150 W
• Frequency response 50 Hz – 3.8 kHz
• Sensitivity 93.4 dB
• Impedance 2 Ω
• Moulded aluminium basket – Ultra-rigid carbon-fibre membrane – NBR perimeter suspension – Long-life “conex” spider – 38 mm voice coil on fiberglass former – Oversized magnetic motor 100 × 20 mm – Gold-plated terminal.

MS 3.55 HIGH EFFICIENCY MIDRANGE DRIVER

• 80 mm midrange extended frequency
• Maximum power 100 W
• Nominal power 25 W
• Frequency response 200 Hz – 27 kHz
• Mounting depth 45.5 mm
• Moulded and machined aluminium basket – Ultra rigid carbon fiber membrane – Peripheral surround in NBR – Long life “conex” spider – 20 mm voice coil on fiberglass former – Oversized magnetic motor 55 × 10 mm – Aluminium magnesium dustcap Gold plated terminal block.

TSM 25 S 45 HIGH QUALITY CROSSOVER

BFX 03 AUDIOPHILE GRADE CROSSOVER

• 2+1 way capacitor 6/12/12 dB/octave
• Crossover frequency: Woofer/Medium: 300 Hz
• Super high-pass tweeter: 10 kHz

Technical Specifications Sheet

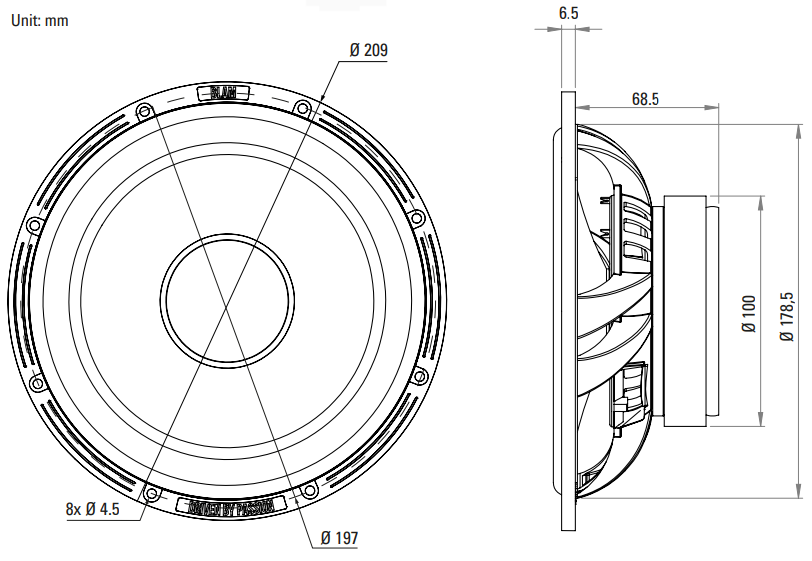

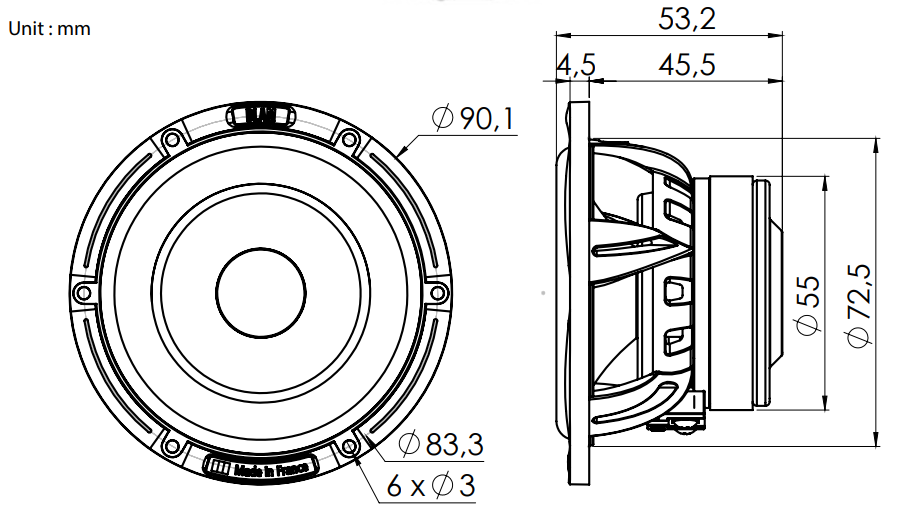

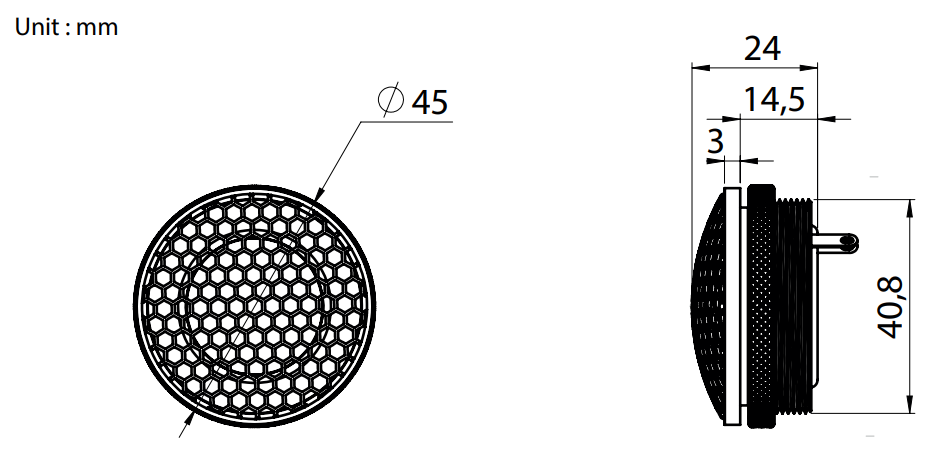

Dimensions
