BLAM SIGNATURE MULTIX S 165 M3 165mm (6.5 inch) 250W 3-Way Hi-End component system

PLEASE NOTE: This is a special product order which we don't stock. Please email our sales team for availability

The MULTIX S 165 M3 from BLAM is a high quality 6.5 Inch (165mm) 3-Way (2+1) component speaker set designed for an unparalleled sound experience. The set includes 2 x Speakers, 2 x medium full range speakers and two magnesium dome tweeters for a wide range of sounds. Also included are four crossovers with adjustable tweeter levels for precise sound tuning. The technical features that guarantee maximum performance and sound quality are outstanding. The robust construction of the individual components such as the die-cast aluminium basket, rigid 3K carbon fiber cones and gold-plated connections make this set unparalleled in terms of performance and sound quality.

The kit includes two 165 mm (6.5″) woofers, two 80 mm (3″) midrange drivers, two 25 mm pure magnesium dome tweeters and four external 6/12 dB/octave high-pass crossovers.

Composition

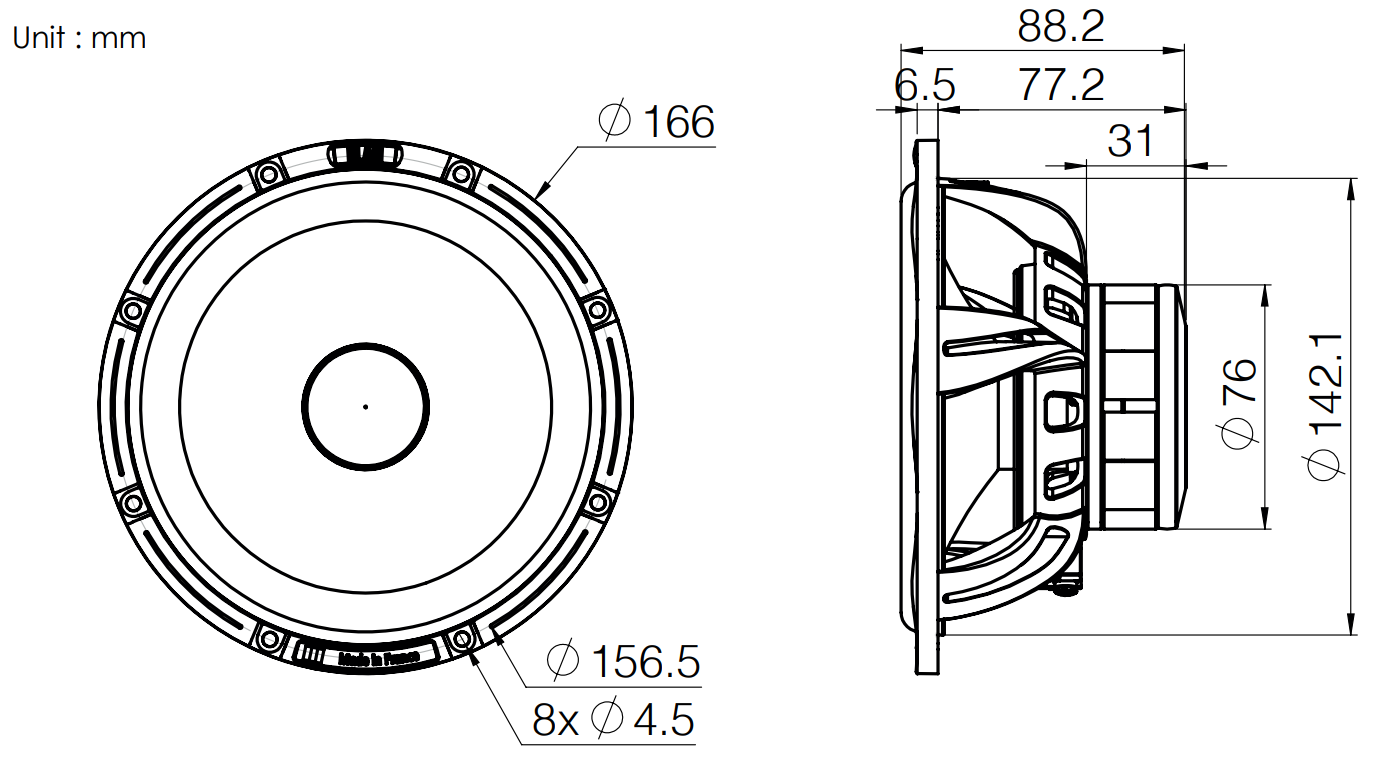

Woofer WS6 – HIGH POWER WOOFER

• 6.5 Inch (165 mm) speakers/ woofers

• Maximum power : 250 W
• Nominal power : 125 W
• Frequency response: 80 Hz – 6 KHz
• Sensitivity: 94 dB
• Impedance: 2 Ω
• Mounting depth 77 mm
• Die-cast aluminium basket – Ultra rigid 3K carbon fiber membrane – NBR surround – Double spider with integrated braids – 38 mm voice coil on fiberglass former – Oversized 10 sticks neodymium magnet – Machined aluminum phase plug – Gold plated terminal – Paired products at +/- 1dB

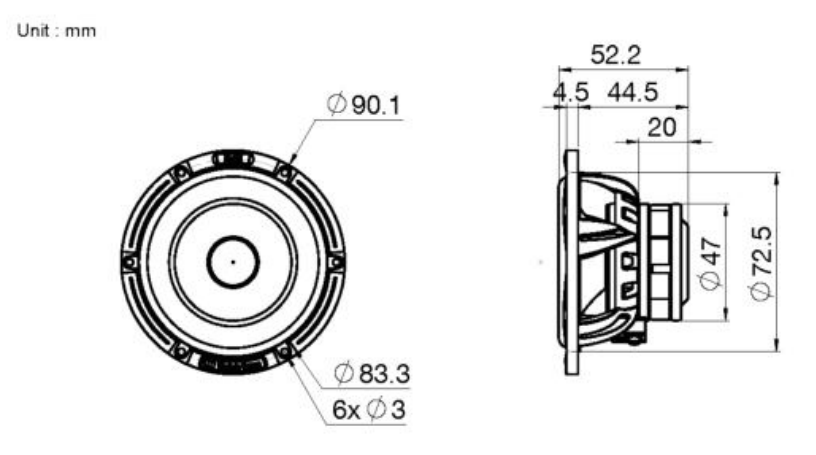

Midrange MS3 – EXTENDED FREQUENCY SPEAKER

• 3 Inch (80 mm) full range midrange

• Maximum power : 100 W
• Nominal power : 25 W
• Frequency response 120 Hz – 32 kHz
• Sensitivity 88 dB
• Impedance 3 Ω
• Mounting depth 44.5 mm
• Die-cast aluminium basket – Ultra-rigid carbon fiber membrane – NBR surround – Long-life “Conex” spider – 38 mm voice coil on fibreglass former – Ultra-powerful 8-stick neodymium magnet – Machined aluminium phase plug – Gold-plated terminal – Products paired at +/- 1dB

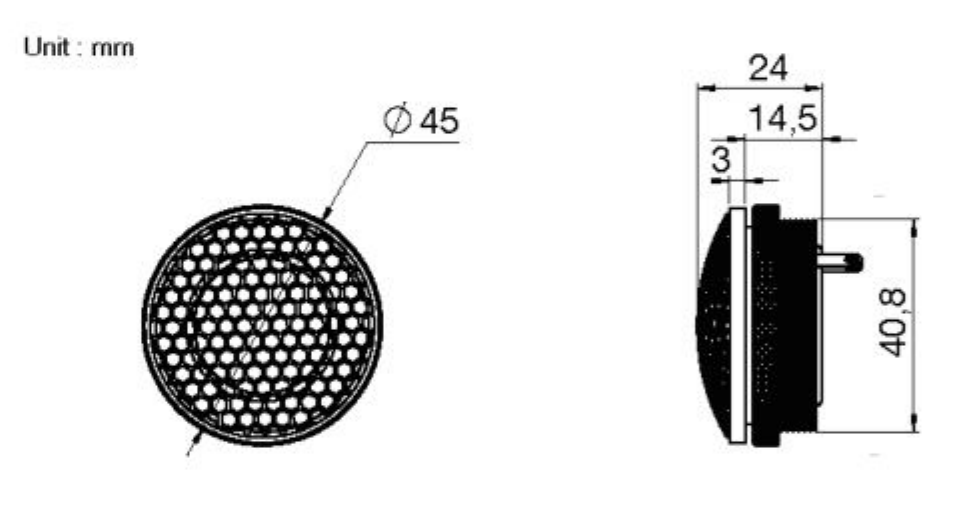

Tweeter TSM25Mg 45 HR – HIGH RESOLUTION TWEETER

• 25 mm (1″) pure magnesium dome tweeter

• Sensitivity: 89 dB – Impedance: 6 Ω
• Frequency response 1.2 KHz – 23 KHz
• N38 high efficiency neodymium magnet – Precision machined aluminium faceplate – Transparent protective grille

MULTIX WOMID AUDIOPHILE CROSSOVER

• Audiophile components

• High pass filter 6/12 dB per octave
• High pass adjustable in frequency from 150 to 500 Hz

BFT01 HIGH QUALITY CROSSOVER

• 12 dB/octave high-pass crossover

• Adjustable tweeter level +3 dB, 0 dB or -3 dB

Technical Specifications Sheets

Dimensions
