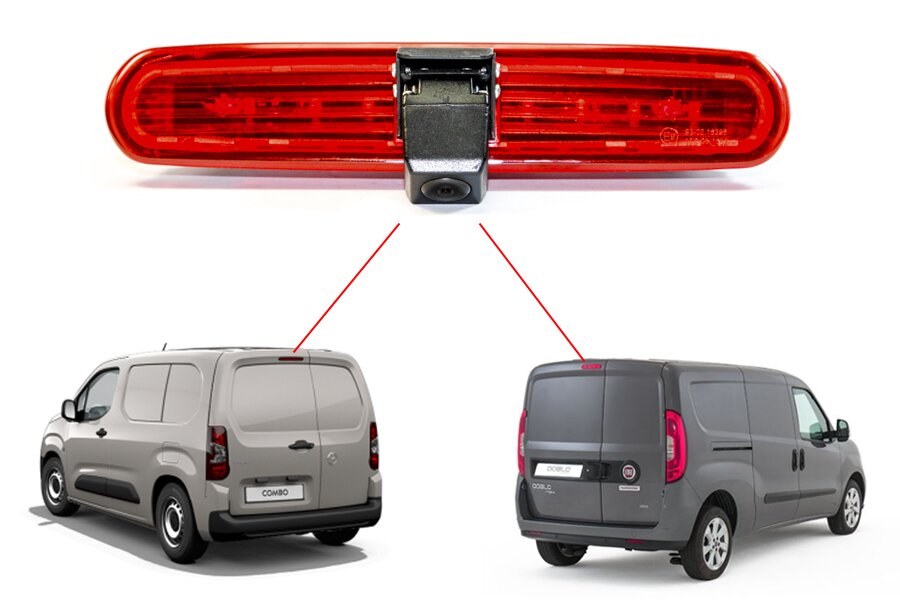

Improve rear visibility with this vehicle-specific high-level brake light reversing camera for Fiat Doblo 2010–2021 and Vauxhall / Opel Combo D 2011–2017 models.
The camera replaces the original high-level brake light housing to provide a discreet OEM-style installation while maintaining the original appearance of the rear of the vehicle.
Its elevated position provides a useful view of the area behind the van when reversing, parking or manoeuvring, making it particularly suitable for commercial vans, campervan conversions and vehicles with restricted rear visibility.
Designed specifically for Fiat Doblo and Vauxhall / Opel Combo D high-level brake light housings.
Replaces the original third brake light housing for a cleaner and more integrated installation than a universal reversing camera.
High-level positioning provides a useful view behind the vehicle when reversing, parking and manoeuvring.
Available with CVBS or AHD video formats for use with compatible aftermarket stereos, monitors and camera interfaces.
Minimum illumination of 0.1 lux helps provide useful rear visibility in lower-light conditions.
Designed for exterior vehicle installation with an IP68-rated, temperature-resistant camera housing.
Please Note: Vehicle variations can exist within the listed production years. Compare the product photographs and dimensions with the original high-level brake light before ordering.

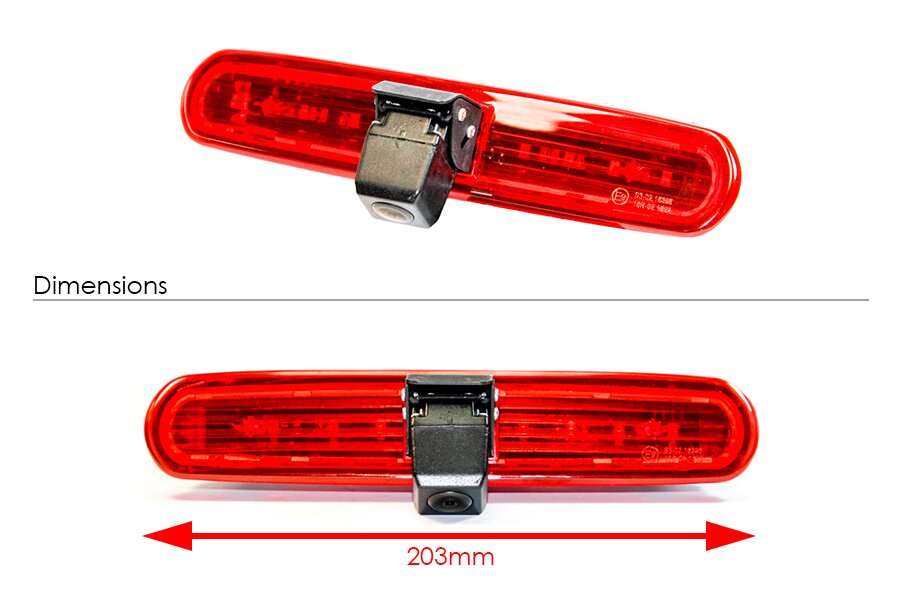

The camera housing measures approximately 203mm wide.
If connecting the 4-pin aviation camera connection to a standard RCA/phono video input, an additional converter adapter may be required.
Always compare the original high-level brake light housing with the product photographs and dimensions before ordering.
| Sensor | 1/2.7 FH8536H + C2399 |
|---|---|
| Video signal | CVBS / AHD optional |
| TV system | NTSC / PAL optional |
| CVBS effective pixels | 728(H) × 488(V) |
| AHD 1080P effective pixels | 1920(H) × 1080(V) |
| AHD 720P effective pixels | 1280(H) × 720(V) |
| Resolution | 700–1000 TVL |
| Minimum illumination | 0.1 lux |
| Night vision distance | Approximately 25ft |
| IP rating | IP68 |
| Current consumption | 150mA |
| Power supply | 12V standard |
| Voltage compatibility | 5V–18V |
| Connector | 4-pin aviation female |
| Operating temperature | -30°C to +75°C, RH95% max |
| Storage temperature | -40°C to +85°C, RH95% max |
| Material | PC plastic |
| Housing properties | High- and low-temperature resistant, flame retardant |
The camera specification supports CVBS / AHD and NTSC / PAL configurations.
The stereo, monitor or camera interface must support the same video format used by the camera. An AHD camera output requires an AHD-compatible display.
CVBS is a conventional analogue video format supported by many aftermarket stereos and reversing camera monitors.
Depending on the installation, this camera can be used with suitable:
Always check that the display supports the video format used by the camera.
If the display uses a standard RCA/phono video connection, an additional 4-pin aviation-to-RCA converter may be required.
The current InCarTec compatibility list includes Fiat Doblo 2nd Gen (263) models from 2010–2015 and the facelift version from 2015–2021.
This camera is designed for selected Vauxhall / Opel Combo D models from 2011–2017.
Yes. The camera is integrated into a replacement high-level brake light housing for a discreet vehicle-specific installation.
The housing measures approximately 203mm across. Compare this dimension and the housing shape with the original vehicle brake light before ordering.
Yes, provided the stereo has a compatible reversing camera input and supports the video format being used. An additional adapter may be required for a standard RCA/phono input.
AHD supports a higher-resolution image when used with a compatible AHD display. CVBS is a conventional analogue video format supported by many aftermarket stereos and reversing camera monitors.
The supplied specification gives an approximate night vision distance of 25ft, with minimum illumination rated at 0.1 lux.
The camera includes a power connection cable and a 10-metre video cable for routing the camera connection through the vehicle.
Contact InCarTec with your Fiat Doblo or Vauxhall Combo model year, together with a photograph of the original high-level brake light and details of the stereo or monitor you plan to use.
Contact InCarTecBrand: InCarTec
Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Fiat - Doblo 2nd Gen (263) (2010 - 2015)
Fiat - Doblo 2nd Gen Facelift (2015 - 2021)
Vauxhall / Opel - Combo D (2011 -2017)
