Fiat Ducato (with OEM Daiichi radios) Double DIN motorhome stereo upgrade fitting kit

Complete fitting kit to install an aftermarket Double DIN stereo and retain use of the factory steering wheel controls in select Fiat Ducato motorhomes with factory fitted Daiichi radios and larger 52pin connector.

This fitting kit will retain use of the factory steering wheel controls, as well as providing a USB extension from the back of a new head-unit to the Ducato's dash or centre console.

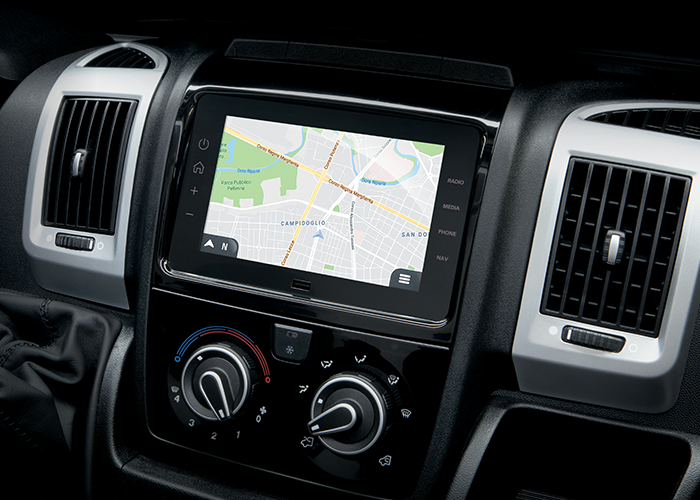

This interface is designed for the Fiat Ducato (2020 Onwards) originally fitted with a Daiichi Standard or Navigation radio (with single USB port below screen) and 8 button steering wheel as seen below:

These models use the later 52 pin large Fiat connector but do not use CAN ignition for the radio and operate with a switched 12v live.

PLEASE NOTE: This interface includes PHONE commands for compatible Bluetooth head-units

This complete head unit fitting kit includes:

Fakra DAB male to DAB SMB female antenna adapter (21-037)

Use to convert the original (Fakra DAB) antenna connector in a car to a female SMB (used on aftermarket head-units)

Fakra to DIN aerial adapter with Phantom Power (21-123K)

This cable converts the original antenna connector in the car, known as a Fakra connector, to a standard aftermarket antenna connector, known as a DIN connector.

The adapter cable has a built in module which provides a phantom power feed to the original antenna in the car. A phantom power feed is a 12v power supply that is sent up the centre wire of the antenna cable, this powers the amplifier built into the original antenna. The antenna adapter cable has a loose wire which needs to be connected to the 12v antenna power output of the new aftermarket stereo.

The phantom power feed terminates in a male bullet connector to make the phantom power lead easier to connect to ISO cables and steering wheel control interfaces with a female bullet connection for the electric antenna turn on

USB/ AUX socket extension (24-032)

28mm push fit USB socket with 3.5mm AUX in Jack  extension cable. Allows you to extend the USB and 3.5mm jack sockets from the back of a new aftermarket head-unit to the cars dash or centre console.

CANbus steering wheel control interface (Daiichi radios) (29-736)

This interface is designed for the Fiat Ducato (2020 Onwards) originally fitted with a Daiichi Standard or Navigation radio (with single USB port below screen) and 8 button steering wheel as seen below:

These models use the later 52 pin large Fiat connector but do not use CAN ignition for the radio and operate with a switched 12v live.

PLEASE NOTE: This interface includes PHONE commands for compatible Bluetooth head-units

Fiat Ducato (2014 Onwards) Double Din fascia with side fix brackets GLOSS BLACK (50-938)

Double DIN fascia kit for 2014 onwards facelifted vehicles.

This kit comes with side fixing brackets so no cage kit is required.

Colour: Gloss Black

For single DIN installation an additional pocket will be required.

There may be some additional plastic that requires cutting to allow the installation of a double-din unit.

Please view our technical bulletin for more information on Double DIN options for this vehicle

TECHNICAL BULLETIN

PLEASE NOTE: This fitting kit is only suitable for vehicles with original large gloss black head units. Some vehicles are fitted with original basic single din units or with an open dashboard, these vehicles require different fitting parts.
