Fiat Ducato, Peugeot Boxer, Citroen Relay DUAL LENS high level brake light camera and monitor kit

Dual Lens reverse view high level brake light camera and video monitor kit specially designed for Fiat Ducato, Citroen Relay and Peugeot Boxer (2006 Onwards) vehicle models

The camera included in this kit replaces the high level brake light at the rear of the vehicle and provides additional visual safety to the back of the vehicle, whilst maintaining its original appearance.

The dual-camera feature allows the driver to view the rear of the vehicle in real time as well as providing a camera feed to make reversing a more comfortable and stress-free experience.

This kit comes complete with a 7 inch 2-channel video monitor, great to use when installing an aftermarket reverse camera(s) without having to affect the original factory fitted system.

DUAL LENS High level brake light camera (CVC-DUC-01-DUAL)

Dual-Lens rear view camera specially designed for Fiat Ducato (2006-2014) vehicles.

This camera replaces the high level brake light at the rear of the vehicle and provides additional visual safety to the back of the vehicle, whilst still maintaining it's original appearance.

The dual-camera feature allows the driver to view the rear of the vehicle in real time as well as providing a camera feed to make reversing a more comfortable and stress-free experience.

This dual-lens camera features a 170 degree lens viewing angle, 1/3" CMOS image censor, 756 x 504 resolution and are waterproof rated at IP68 as standard.

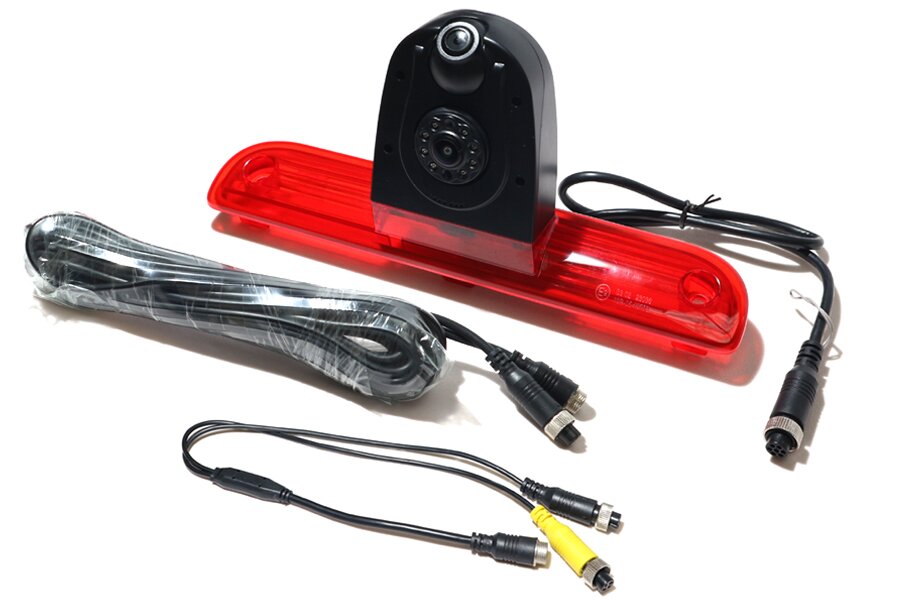

This camera kit Includes a 10m 7-pin extension cable and 4-pin to 7-pin cable splitter

Specifications

Image sensors: 1/3? color HD CMOS/CCD

System: NTSC/PAL (TV system)

Min illumination:0Lux (LED ON)

Perfect IR night vision, 8 pcs IR LED

Lens Angle: 170°

Night Vision distance:30ft

Minimum illumination. <0.5 BLC: Auto

White Balance: Auto,Video Color: Colorful

Waterproof Class: IP68

Effective Pixels : 756(H)*504(V)

Pixel Resolution : 600TV lines

Video Output: 1.0Vp-p,75

Electronic Shutter: 1/60(NTSC)-1/10000S

S/N ratio: Better Than 48db

Operation Temperature: -20°C+70°C RH95%

Storage Temperature: -40°C+100°C RH95%

Working Power (DC): 12V/1,5

Watt Current consumption: 90mA Max

Video cable is RCA connector/4Pin aviation

PLEASE NOTE

Whilst we do our best to make sure our product compatibility listings are as accurate as possible, there may still be exceptions. Different vehicle shapes may require different cameras. Please check that the image of the camera matches the existing brake light on the vehicle.

7 inch Rear View Camera Monitor/Screen (CVC-M-709)

7 inch Rear View Camera Monitor/Screen (4 PIN Connection)

These monitors are great to use when installing an aftermarket reverse camera(s) without having to affect the original factory fitted system.

U Bracket included. You can change the bracket to either CVC-M-BR01 or CVC-M-BR05  ball joint swivel brackets.

Product Specifications

Screen Size: 7 inch

Resolution: 800 x 480

Screen Luminance: 450CD

Contrast: 500:1

View angle range: U:50/ D:60/ L/R: 70

Video/Audio: Supports 3 CH video input, 2 Channels aviation plug supports video/audio, 1 Channel RCA Input

Video format: CVBS/ PAL/ AUTO NTSC

Working Voltage: DC 10.8-36V

Bracket: U shaped bracket

Wire Plug: 2 X RCA Plug

OSD menu features: Switch parking guide lines, Mirror/ Non-mirror image view switch, Reverse time delay 0-10 Seconds, Different language options, Adjust video effects, Adjust volume
