InCarTec Products > CAMERAS

Ford Transit (2012 Onwards) high level brake light camera and monitor kit

CK-FOR-01
Price: £126.66 (£151.99 inc VAT)

Reverse view high level brake light camera and video monitor kit specially designed for Ford Transit (2012 Onwards) vehicle models.

The camera included in this kit replaces the high level brake light at the rear of the vehicle and provides additional visual safety to the back of the vehicle, whilst maintaining its original appearance.

This kit comes complete with a 5 inch standalone windscreen video monitor, great to use when installing an aftermarket reverse camera without having to modify the original factory fitted system.

Reverse view high level brake light camera and video monitor kit specially designed for Ford Transit (2012 Onwards) vehicle models.

The camera included in this kit replaces the high level brake light at the rear of the vehicle and provides additional visual safety to the back of the vehicle, whilst maintaining its original appearance.

This kit comes complete with a 5 inch standalone windscreen video monitor, great to use when installing an aftermarket reverse camera without having to modify the original factory fitted system.

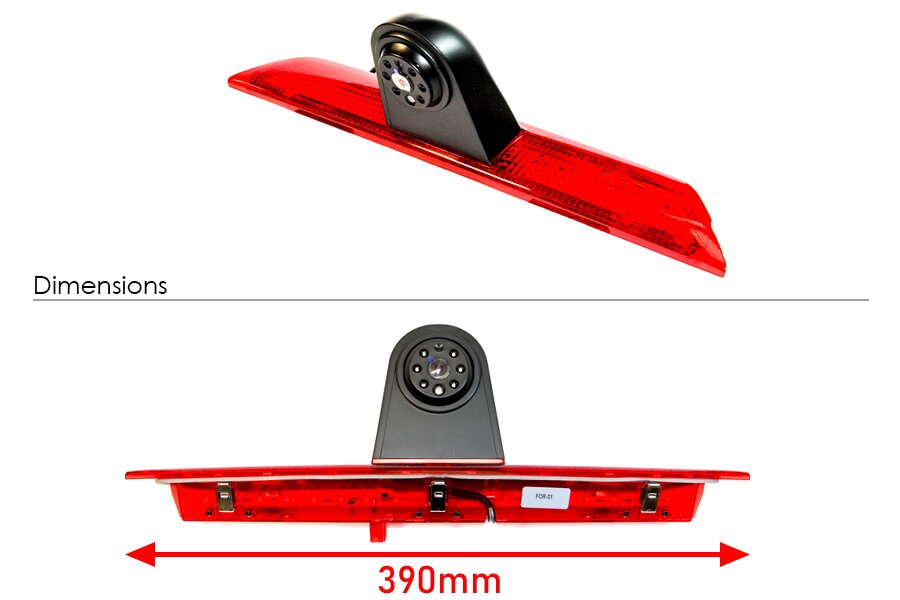

High level brake light camera (CVC-FOR-01)

Special rear camera for 2013 onward Ford Transit vans. Replaces the rear high level brake light.

If you are fitting to the cars original screen and are unsure of which version of SYNC you have then please see our guide to identifying SYNC and which camera interface to use

  • 12v power
  • Colour CMOS image, NTSC.
  • 150° View Angle
  • IP68 Waterproof
  • Includes power cable and 10 metre video cable


Not compatible with Transit Custom or Transit Connect

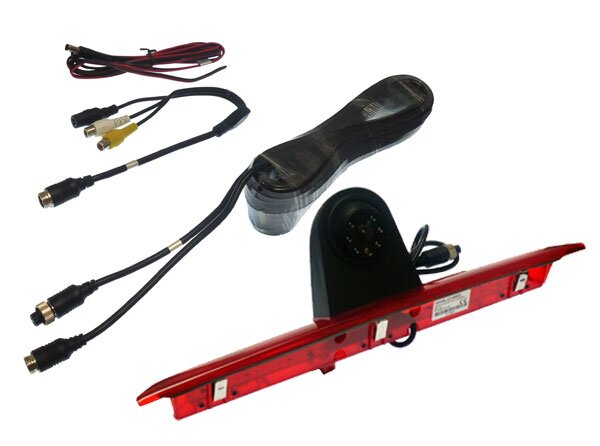

Below is a picture of the camera with the supplied cables


PLEASE NOTE: Whilst we do our best to make sure our product compatibility listings are as accurate as possible, there may still be exceptions.


5 inch video monitor (M-S5.0)

5 inch standalone windscreen video monitor with suction mount bracket.

These monitors are great to use when installing an aftermarket reverse camera without having to modify the original factory fitted system.

Comes with a 4 ratchet (4R) style mounting point for use with other 4R series mounts and brackets.


Main Features

- High brightness/resolution digital 5" wide-screen LCD panel applied.

- Super slim design, easy to mount on top of dashboard or window glass.

- Dual video input, standard RCA connectors. Shielding cables used to avoid signal interference when both channels are connected to cameras or video.

- Adjustable suction mount bracket.

- Adjustable brightness and colour intensity.

- Rear 4 ratchet (4R) style mounting point for use with other 4R series mounts and brackets. (see below picture)

- Guidelines only available when used with a camera with guidelines.


Specifications

- Screen type: TFT LCD

- Screen size: 5" color

- Resolution:480*RGB*272

- Brightness:400cd/m2

- Display format: 16:9

- Video input: 2-channel

- Voltage: 12V


Installation

- Can be powered from a 12v ignition or reverse feed.

- Sometimes the reverse power feed from the reversing lights may not be strong enough to power the monitor. A separate power feed relay (10-641) may be required to give a better 12v power feed.


Brand: InCarTec

Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Ford - Transit MK8 (2013-2018)
Ford - Transit MK8 Facelift (2018 >)
