Vehicle-specific dual-lens high-level brake light camera for selected Ford Transit MK8 and MK8 Facelift models from 2014–2024.
Two independent cameras provide a dedicated reversing view plus a continuous rear-view image when connected to a suitable monitor or display system. Features selectable CVBS/AHD and NTSC/PAL video options, infrared night vision, IP68-rated housing and vehicle-specific high-level installation.
Includes a 10m 7-pin extension cable and 4-pin to 7-pin camera splitter.
PLEASE NOTE: If connecting to standard Video inputs (RCA/PHONO), an additional 2x CVC-CB-09 converter cables will be required.
Improve rear visibility with this vehicle-specific dual-lens high-level brake light camera for selected Ford Transit MK8 and MK8 Facelift models from 2014–2024.
The dual-camera design provides two independent rear views. One camera can be used as a dedicated reversing camera, while the second can provide a continuous rear-view image when connected to a suitable monitor, stereo or camera switching system.
Both cameras are integrated into the replacement high-level brake light housing, creating a discreet OEM-style installation while maintaining the original appearance of the rear of the vehicle.
Two independent cameras allow one view for reversing and a second continuous rear-view image while driving.
Designed around the Ford Transit high-level brake light position for a cleaner installation than separate universal cameras.
High-level mounting provides a useful view behind large vans when parking, manoeuvring or monitoring the road behind.
Available with CVBS or AHD video formats for use with a range of compatible aftermarket stereos and monitors.
High-brightness infrared LED support helps provide rear visibility in low-light conditions, with a night vision distance of approximately 30ft.
Designed for exterior vehicle installation with an IP68-rated, temperature-resistant camera housing.
A conventional reversing camera is normally positioned to give the best view of the area immediately behind the vehicle when parking or manoeuvring.
A dual-lens system adds a second camera that can provide a more conventional rear-view perspective. When connected to a suitable dual-input monitor or switching system, this allows a continuous rear image while driving alongside a separate reversing view.
This makes the camera particularly useful for commercial vans, fleet vehicles, campervan conversions and Ford Transits with restricted rear visibility.

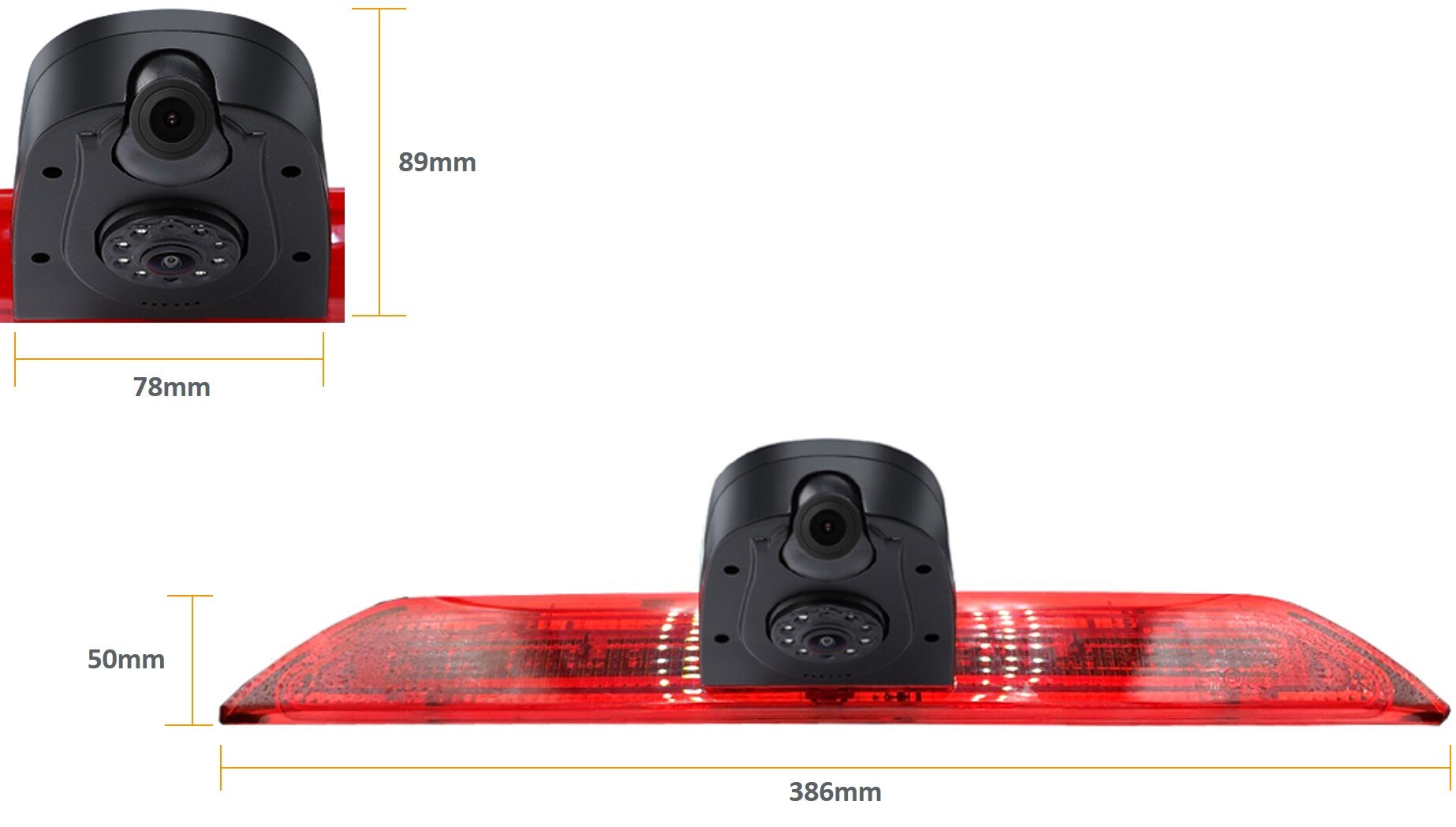

Please Note: Vehicle variations can exist within the listed production years. Compare the product photographs, dimensions and brake light housing with the original high-level brake light fitted to the vehicle before ordering.
PLEASE NOTE: If connecting to standard Video inputs (RCA/PHONO), an additional 2x CVC-CB-09 converter cables will be required.
If connecting the cameras to the vehicle's original Ford SYNC display, an additional vehicle-specific camera interface may be required. If you are unsure which SYNC system is fitted, view our guide to identifying SYNC and which camera interface to use .
This camera is designed for selected Ford Transit MK8 models. Compatibility should not be assumed for Transit Custom or Transit Connect models based on production year alone.
Always compare the original high-level brake light housing with the product photographs and dimensions before ordering.
| Sensor | 1/2.7 FH8536H + C2399 |
|---|---|
| Video signal | CVBS / AHD optional |
| TV system | NTSC / PAL optional |
| CVBS effective pixels | 728(H) × 488(V) |
| AHD 1080P effective pixels | 1920(H) × 1080(V) |
| AHD 720P effective pixels | 1280(H) × 720(V) |
| Resolution | 700–1000 TVL |
| Minimum illumination | 0.1 lux; 0 lux with LED active |
| IR LED | High-brightness LED |
| Night vision distance | Approximately 30ft |
| IP rating | IP68 |
| Current consumption | 150mA |
| Power supply | 12V standard |
| Voltage compatibility | 5V–18V |
| Connector | 4-pin aviation female |
| Operating temperature | -30°C to +75°C, RH95% max |
| Storage temperature | -40°C to +85°C, RH95% max |
| Material | PC plastic |
| Housing properties | High- and low-temperature resistant, flame retardant |

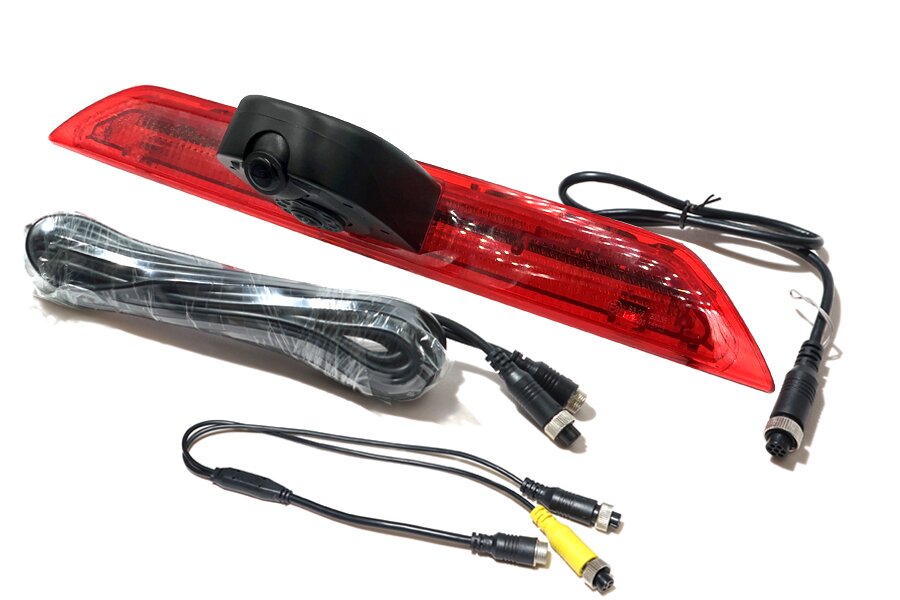

The dual-lens camera provides two separate video feeds. These connect through the supplied splitter and extension cable.
Each camera uses a 4-pin aviation connection.
PLEASE NOTE: If connecting to standard Video inputs (RCA/PHONO), an additional 2x CVC-CB-09 converter cables will be required.
One camera can provide a continuous rear image when connected to a suitable monitor that remains active while the vehicle is being driven.
The second camera can provide a more downward-facing view of the area immediately behind the Transit for parking and low-speed manoeuvring.
How the two feeds are displayed will depend on the monitor, stereo or camera switching equipment being used.
The camera specification supports CVBS / AHD and NTSC / PAL configurations.
The stereo or monitor must support the video format used by the cameras. An AHD camera output requires an AHD-compatible display.
CVBS is a conventional analogue video format supported by many aftermarket stereos and reversing camera monitors.
Depending on the installation, the cameras can be used with suitable:
If connecting to an original Ford SYNC display, the correct interface depends on the SYNC system fitted to the vehicle.
View our guide to identifying SYNC and which camera interface to use .
If the stereo or monitor uses standard RCA/phono Video inputs, an additional 2x CVC-CB-09 converter cables will be required for the two camera feeds.
Please Note: If connecting both camera feeds to standard Video inputs (RCA/PHONO), an additional 2x CVC-CB-09 converter cables will be required.
A dual-lens brake light camera contains two independent cameras in the same high-level housing. One can provide a reversing image while the second can provide a continuous rear-view image.
This camera is designed for selected Ford Transit MK8 models from 2014–2019 and Ford Transit MK8 Facelift models from 2019–2024.
Always compare the original high-level brake light housing with the product photographs and dimensions before ordering.
Yes. One camera feed can provide a continuous rear-view image when connected to a suitable monitor that can remain active while driving.
Yes. The two cameras provide separate video feeds, allowing them to be used for different rear-view functions when connected to suitable equipment.
This depends on the stereo. Many head units only provide one reversing camera input, so a separate camera switcher, dual-input monitor or compatible interface may be required to use both feeds.
If connecting to standard RCA/phono Video inputs, an additional 2x CVC-CB-09 converter cables will be required.
On compatible Ford SYNC systems, the camera feeds may be connected to the original display using a suitable vehicle-specific camera interface. The correct interface depends on the SYNC system fitted.
If you are unsure which system is fitted, view our guide to identifying SYNC and which camera interface to use before selecting an interface.
AHD supports a higher-resolution image when used with a compatible AHD display. CVBS is a conventional analogue video format supported by many aftermarket stereos and camera monitors.
Yes. The camera specification includes a high-brightness infrared LED, 0 lux operation with the LED active and an approximate night vision distance of 30ft.
Contact InCarTec with the vehicle make, model, year, photographs of the original high-level brake light and details of the stereo, monitor or Ford SYNC system being used.
Contact InCarTecBrand: InCarTec
Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Ford - Transit MK8 (2014-2019)
Ford - Transit MK8 Facelift (FAC/FAD) (2019 - 2024)
