Vehicle-specific high-level brake light reversing camera for Ford Transit Custom 2012–2015 models with the original standard bulb brake light.
The camera replaces the original high-level brake light housing for a discreet OEM-style installation and elevated rear view. Available with CVBS/AHD and NTSC/PAL video options, infrared night vision, IP68-rated housing and a 4-pin aviation connection.
Please Note: This version requires the existing OEM standard bulb. For later vehicles with an LED brake light, use CVC-FOR-03.
Improve rear visibility with this vehicle-specific high-level brake light reversing camera for Ford Transit Custom models from 2012–2015 fitted with the original standard bulb brake light.
The camera replaces the original high-level brake light housing, creating a discreet OEM-style installation without requiring a separate universal camera bracket.
Its elevated mounting position provides a useful view behind the van when reversing, parking or manoeuvring, making it ideal for commercial vans, fleet vehicles and campervan conversions with restricted rear visibility.
Designed specifically for Ford Transit Custom models using the original standard bulb high-level brake light.
Replaces the original high-level brake light housing for a discreet factory-style appearance.
High-level mounting provides a useful view behind the vehicle when reversing and manoeuvring.
Available with CVBS or AHD video formats for use with compatible aftermarket stereos, monitors and camera interfaces.
High-brightness infrared LED support helps provide a rear image in low-light conditions, with a night vision distance of approximately 30ft.
Designed for exterior vehicle installation with an IP68-rated, temperature-resistant camera housing.
PLEASE NOTE: This camera requires use of the vehicle's existing OEM standard brake light bulb. For later Transit Custom vehicles fitted with an LED high-level brake light, use CVC-FOR-03 .

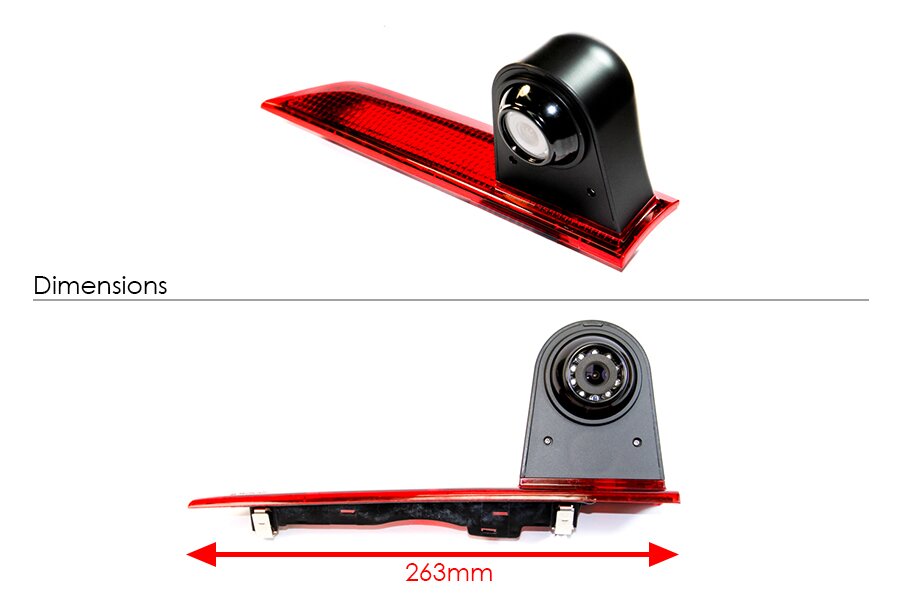

Vehicle variations can exist within production years. Compare the product photographs and dimensions with the original high-level brake light before ordering.
If connecting this camera to the vehicle's original Ford SYNC screen, an additional vehicle-specific camera interface may be required. If you are unsure which SYNC system is fitted, view our guide to identifying SYNC and which camera interface to use .
This version is specifically intended for the earlier standard bulb brake light configuration.
For later Transit Custom models with an LED high-level brake light, use CVC-FOR-03 .
| Sensor | 1/2.7 FH8536H + C2399 |
|---|---|
| Video signal | CVBS / AHD optional |
| TV system | NTSC / PAL optional |
| CVBS effective pixels | 728(H) × 488(V) |
| AHD 1080P effective pixels | 1920(H) × 1080(V) |
| AHD 720P effective pixels | 1280(H) × 720(V) |
| Resolution | 700–1000 TVL |
| Minimum illumination | 0.1 lux; 0 lux with LED active |
| IR LED | High-brightness LED |
| Night vision distance | Approximately 30ft |
| IP rating | IP68 |
| Current consumption | 150mA |
| Power supply | 12V standard |
| Voltage compatibility | 5V–18V |
| Connector | 4-pin aviation female |
| Operating temperature | -30°C to +75°C, RH95% max |
| Storage temperature | -40°C to +85°C, RH95% max |
| Material | PC plastic |
| Housing properties | High- and low-temperature resistant, flame retardant |
The camera specification supports CVBS / AHD and NTSC / PAL configurations.
The stereo or monitor must support the video format used by the camera. An AHD output requires an AHD-compatible display.
CVBS is a conventional analogue video format supported by many aftermarket stereos and reversing camera monitors.
Depending on the installation, this camera can be used with suitable:
If connecting the camera to the original Ford display, the correct interface depends on which SYNC system is fitted.
View our guide to identifying SYNC and which camera interface to use .
The existing OEM standard brake light bulb is retained and is not replaced by an LED bulb within this camera housing.
This camera is designed for Ford Transit Custom models from 2012–2015 fitted with the original standard bulb high-level brake light.
Ford Transit Custom models use different high-level brake light configurations. CVC-FOR-02 is designed to retain the existing OEM standard bulb. Vehicles using the later LED brake light require a different camera housing.
For later Ford Transit Custom vehicles fitted with an LED high-level brake light, use CVC-FOR-03 .
Yes, provided the stereo has a compatible reversing camera input and supports the video format used by the camera. An additional adapter may be required when connecting the 4-pin aviation connector to a standard RCA/phono camera input.
On compatible Ford systems, the camera can be connected to the original display using the appropriate vehicle-specific camera interface. The correct interface depends on the SYNC version fitted.
If you are unsure which system is fitted, view our Ford SYNC identification guide before selecting an interface.
AHD supports a higher-resolution image when used with a compatible AHD display. CVBS is a conventional analogue camera format supported by many aftermarket stereos and reversing camera monitors.
Yes. The specification includes a high-brightness infrared LED, 0 lux operation with the LED active and an approximate night vision distance of 30ft.

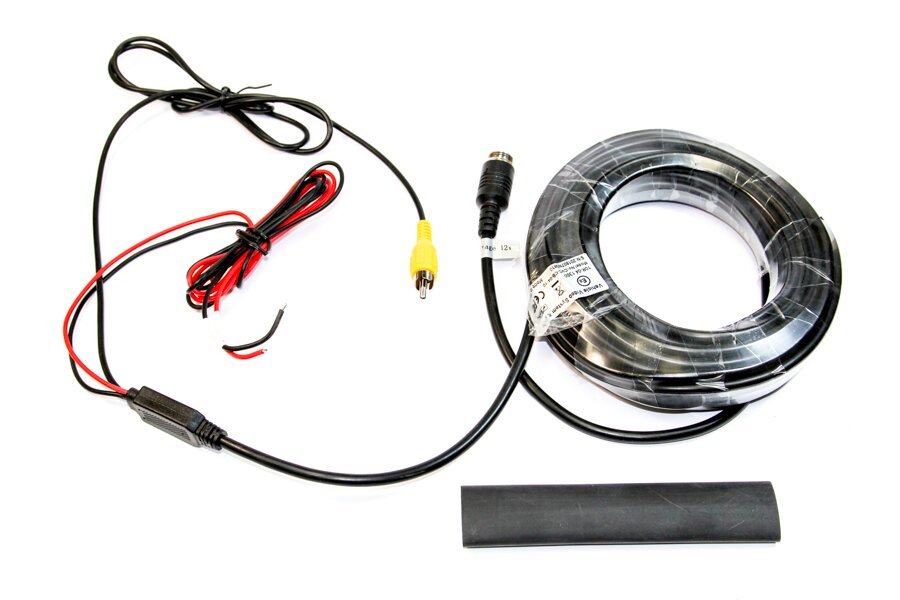

The camera includes its power connection cable and a 10-metre video cable for routing the connection through the vehicle.
Contact InCarTec with the vehicle year, a photograph of the original high-level brake light and details of the stereo, monitor or Ford SYNC system being used.
Contact InCarTecBrand: InCarTec
Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Ford - Transit Custom MK1 (2012 - 2018)
