Vehicle-specific high-level brake light reversing camera for Ford Transit Custom models from 2016–2024 fitted with the factory LED high-level brake light.
The camera replaces the original brake light housing for a discreet OEM-style installation and elevated rear view. Available with CVBS/AHD and NTSC/PAL video options, infrared night vision, IP68-rated housing and a 4-pin aviation connection.
Please Note: This version is for vehicles with the factory LED high-level brake light. For earlier Transit Custom models with a standard bulb, use CVC-FOR-02.
Improve rear visibility with this vehicle-specific high-level brake light reversing camera for selected Ford Transit Custom models fitted with the factory LED high-level brake light.
The camera replaces the original high-level brake light housing, creating a discreet OEM-style installation without requiring a separate universal camera bracket.
Its elevated mounting position provides a useful view behind the van when reversing, parking or manoeuvring, making it well suited to commercial vehicles, fleet vans and campervan conversions.
Designed for selected Ford Transit Custom models fitted with the factory LED high-level brake light.
Replaces the original high-level brake light housing for a discreet, factory-style appearance.
High-level mounting provides a useful view of the area behind the vehicle when reversing and manoeuvring.
Available with CVBS or AHD video formats for use with compatible aftermarket stereos, monitors and camera interfaces.
High-brightness infrared LED support helps provide a rear image in low-light conditions, with a night vision distance of approximately 30ft.
Designed for exterior vehicle installation with an IP68-rated, temperature-resistant camera housing.
PLEASE NOTE: This version is suitable for Transit Custom vehicles fitted with the factory LED high-level brake light. For earlier models using a standard bulb, use CVC-FOR-02 .

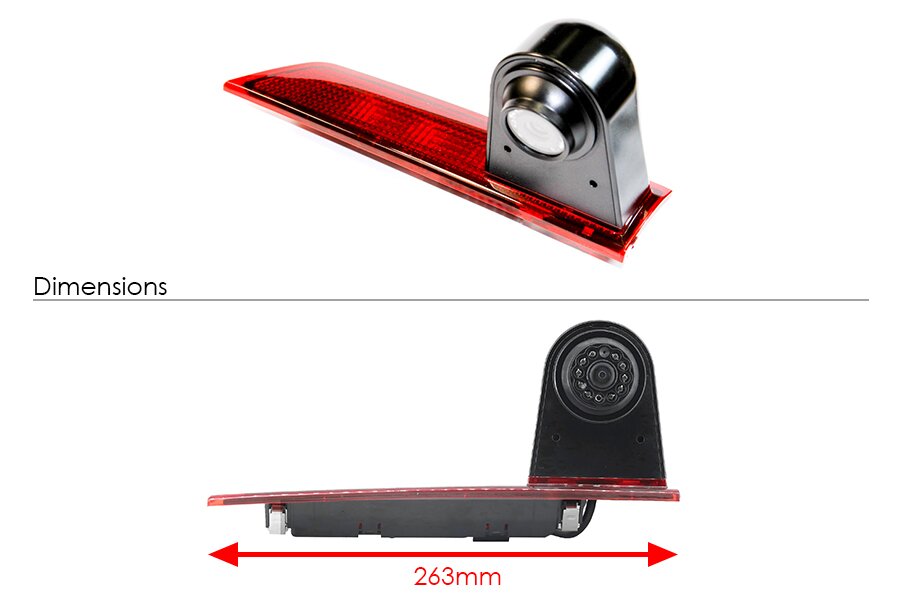

Vehicle variations can exist within production years. Compare the product photographs, dimensions and brake light housing with the original high-level brake light before ordering.
If connecting this camera to the vehicle's original Ford SYNC screen, an additional vehicle-specific camera interface may be required. If you are unsure which SYNC system is fitted, view our guide to identifying SYNC and which camera interface to use .
The current InCarTec compatibility data covers Transit Custom MK1 and MK1 Facelift vehicles through 2024.
Always confirm the brake light type, housing shape and dimensions before ordering.
For earlier Transit Custom models using the standard bulb brake light, use CVC-FOR-02 .
| Sensor | 1/2.7 FH8536H + C2399 |
|---|---|
| Video signal | CVBS / AHD optional |
| TV system | NTSC / PAL optional |
| CVBS effective pixels | 728(H) × 488(V) |
| AHD 1080P effective pixels | 1920(H) × 1080(V) |
| AHD 720P effective pixels | 1280(H) × 720(V) |
| Resolution | 700–1000 TVL |
| Minimum illumination | 0.1 lux; 0 lux with LED active |
| IR LED | High-brightness LED |
| Night vision distance | Approximately 30ft |
| IP rating | IP68 |
| Current consumption | 150mA |
| Power supply | 12V standard |
| Voltage compatibility | 5V–18V |
| Connector | 4-pin aviation female |
| Operating temperature | -30°C to +75°C, RH95% max |
| Storage temperature | -40°C to +85°C, RH95% max |
| Material | PC plastic |
| Housing properties | High- and low-temperature resistant, flame retardant |
The camera specification supports CVBS / AHD and NTSC / PAL configurations.
The stereo or monitor must support the video format used by the camera. An AHD output requires an AHD-compatible display.
CVBS is a conventional analogue video format supported by many aftermarket stereos and reversing camera monitors.
Depending on the installation, the camera can be used with suitable:
If connecting the camera to the original Ford display, the correct interface depends on the SYNC system fitted to the vehicle.
View our guide to identifying SYNC and which camera interface to use .
This camera is designed for selected Ford Transit Custom models fitted with the factory LED high-level brake light. The current compatibility data includes Transit Custom MK1 and MK1 Facelift vehicles through 2024.
Check the original high-level brake light fitted to the vehicle. CVC-FOR-03 is intended for vehicles with the factory LED brake light. Compare the housing and dimensions with the product images before ordering.
For earlier Ford Transit Custom models fitted with a standard bulb high-level brake light, use CVC-FOR-02 .
Yes, provided the stereo has a compatible reversing camera input and supports the video format used by the camera. An additional adapter may be required when connecting the 4-pin aviation connector to a standard RCA/phono camera input.
On compatible Ford systems, the camera may be connected to the original display using the appropriate vehicle-specific camera interface. The correct interface depends on the SYNC version fitted.
If you are unsure which system is fitted, view our Ford SYNC identification guide before selecting an interface.
AHD supports a higher-resolution image when used with a compatible AHD display. CVBS is a conventional analogue camera format supported by many aftermarket stereos and reversing camera monitors.
Yes. The specification includes a high-brightness infrared LED, 0 lux operation with the LED active and an approximate night vision distance of 30ft.

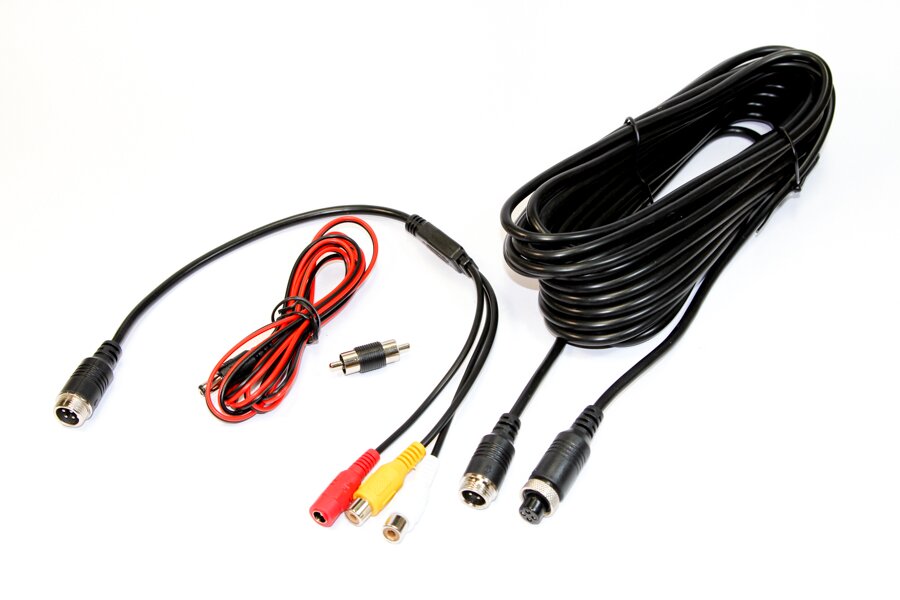

The camera includes a power connection cable and 10-metre video cable for routing the camera connection through the vehicle.
Contact InCarTec with the vehicle year, a photograph of the original high-level brake light and details of the stereo, monitor or Ford SYNC system being used.
Contact InCarTecBrand: InCarTec
Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Ford - Transit Custom MK1 (2012 - 2018)
Ford - Transit Custom MK1 Facelift (FAC/FAD) (2018 - 2024)
