Vehicle-specific high-level brake light reversing camera for Iveco Daily models from 2023 onwards. The camera replaces the original rear high-level brake light housing for a discreet OEM-style installation while providing an elevated view behind the vehicle for reversing, parking and manoeuvring. Available with CVBS/AHD and NTSC/PAL video options, up to 1920 × 1080 AHD effective pixels, 0.1 lux minimum illumination, approximately 25ft night vision distance, IP68-rated housing and a 4-pin aviation connection. Includes a power cable and 10-metre video cable.
Please Note: Compare the dimensions and brake-light shape with the original vehicle before ordering.
Improve rear visibility with this vehicle-specific high-level brake light reversing camera for selected Iveco Daily models from 2023 onwards.
The camera replaces the vehicle's original rear high-level brake light housing, providing a discreet OEM-style installation while maintaining the original appearance of the rear of the vehicle.
Its elevated position provides a useful view of the area behind the van when reversing, parking or manoeuvring, making it particularly useful for commercial vehicles, campervan conversions and motorhomes where rear visibility may be restricted.
Designed around the rear high-level brake light housing used on selected Iveco Daily models from 2023 onwards.
Replaces the original third brake light housing for a cleaner and more integrated installation than a universal reversing camera.
High-level positioning provides a useful view behind the vehicle when reversing, parking and manoeuvring.
Available with CVBS or AHD video formats for use with compatible aftermarket stereos, monitors and camera interfaces.
Minimum illumination of 0.1 lux helps provide useful rear visibility in lower-light driving conditions.
Designed for exterior vehicle installation with an IP68-rated, temperature-resistant camera housing.
Please Note: Vehicle variations can exist within the listed production years. Compare the product photographs and dimensions with the original high-level brake light before ordering.

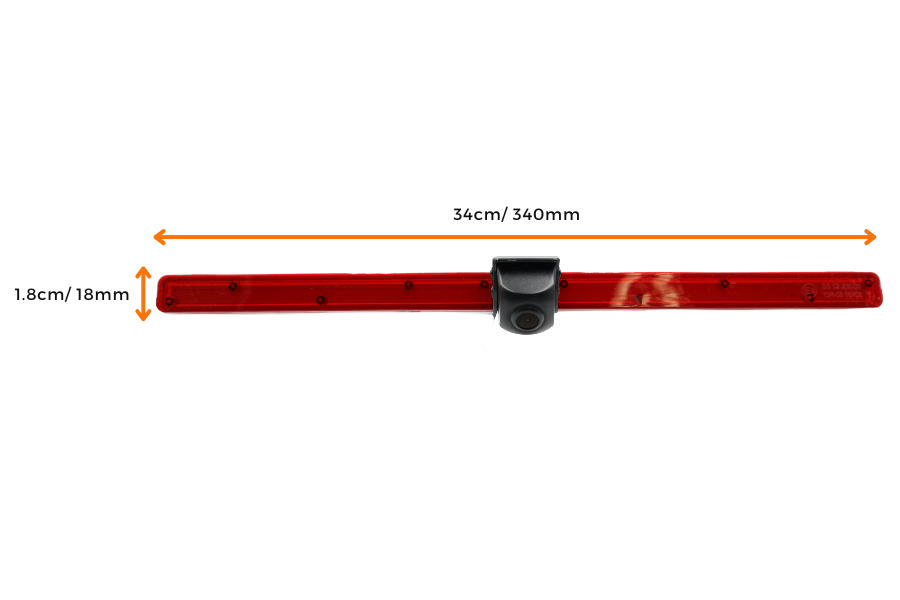

The camera housing measures approximately 340mm wide × 18mm high.
If connecting the 4-pin aviation camera connection to a standard RCA/phono video input, an additional converter adapter may be required.
Always compare the original high-level brake light housing with the product photographs and dimensions before ordering.
| Sensor | 1/2.7 FH8536H + C2399 |
|---|---|
| Video signal | CVBS / AHD optional |
| TV system | NTSC / PAL optional |
| CVBS effective pixels | 728(H) × 488(V) |
| AHD 1080P effective pixels | 1920(H) × 1080(V) |
| AHD 720P effective pixels | 1280(H) × 720(V) |
| Resolution | 700–1000 TVL |
| Minimum illumination | 0.1 lux |
| Night vision distance | Approximately 25ft |
| IP rating | IP68 |
| Current consumption | 150mA |
| Power supply | 12V standard |
| Voltage compatibility | 5V–18V |
| Connector | 4-pin aviation female |
| Operating temperature | -30°C to +75°C, RH95% max |
| Storage temperature | -40°C to +85°C, RH95% max |
| Material | PC plastic |
| Housing properties | High- and low-temperature resistant, flame retardant |
CVC-IVE-03 is integrated into a replacement high-level brake light housing designed for selected Iveco Daily models.
The housing measures approximately 340mm wide × 18mm high.
Always compare both the dimensions and the overall housing shape with the original vehicle brake light before ordering.
The camera specification supports CVBS / AHD and NTSC / PAL configurations.
The stereo, monitor or camera interface must support the same video format used by the camera. An AHD output requires an AHD-compatible display.
CVBS is a conventional analogue video format supported by many aftermarket stereos and reversing camera monitors.
Depending on the installation, this camera can be used with suitable:
Always check that the display supports the video format used by the camera.
If the display uses a standard RCA/phono video input, an additional 4-pin aviation-to-RCA converter may be required.
CVC-IVE-03 is designed for selected Iveco Daily models from 2023 onwards.
Always compare the existing high-level brake light with the product photographs and dimensions before ordering.
Yes. The camera is integrated into a replacement high-level brake light housing to provide a discreet vehicle-specific installation while maintaining the original appearance of the rear of the van.
The housing measures approximately 340mm wide × 18mm high. Compare these dimensions and the housing shape with the original brake light before ordering.
Yes, provided the stereo has a compatible reversing camera input and supports the video format being used. An additional adapter may be required for a standard RCA/phono input.
Yes. It can be used with a suitable reversing camera or commercial vehicle monitor, provided the monitor supports the camera's video format and connection type.
AHD supports a higher-resolution image when used with a compatible AHD display. CVBS is a conventional analogue video format supported by many aftermarket stereos and reversing camera monitors.
The supplied specification gives an approximate night vision distance of 25ft, with minimum illumination rated at 0.1 lux.

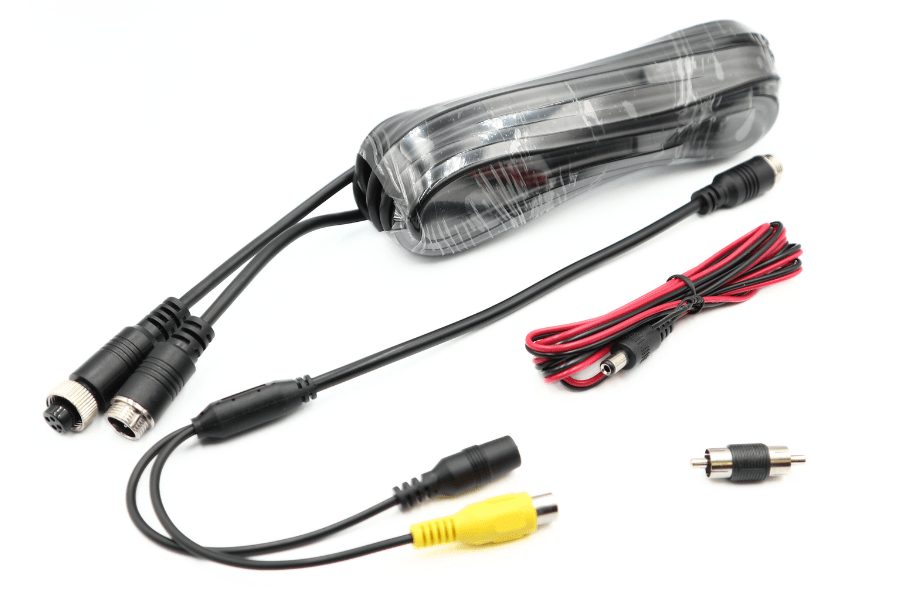

The camera includes a power connection cable and a 10-metre video cable for routing the camera connection through the vehicle.
Contact InCarTec with your Iveco Daily model year, a photograph of the original high-level brake light and details of the stereo or monitor you plan to use.
