Vehicle-specific high-level brake light reversing camera for Mercedes Vito W447 models from 2016–2024 fitted with a single tail-lift rear door. The camera replaces the original high-level brake light housing for a discreet OEM-style installation while providing an elevated view behind the vehicle for reversing, parking and manoeuvring. The live product page specifically states that this version is for tail-lift-door vehicles.
Please Note: This camera is specifically for Mercedes Vito models with a tail-lift rear door. It is not the correct version for vehicles fitted with barn doors.
Improve rear visibility with this vehicle-specific high-level brake light reversing camera for selected Mercedes Vito W447 models from 2016–2024 fitted with a single tail-lift rear door.
The camera replaces the original high-level brake light housing for a discreet OEM-style installation while maintaining the original appearance of the rear of the vehicle.
Its elevated mounting position provides a useful view of the area behind the van when reversing, parking or manoeuvring, making it particularly suitable for commercial vehicles, campervans and Vito models with restricted rear visibility.
Specifically designed for selected Mercedes Vito W447 models fitted with a single tail-lift rear door.
Replaces the original high-level brake light housing for a clean, integrated appearance.
High-level positioning provides a useful view behind the vehicle when reversing, parking and manoeuvring.
Available with CVBS or AHD video formats for use with compatible aftermarket stereos, monitors and camera interfaces.
Minimum illumination of 0.1 lux helps provide useful rear visibility in lower-light conditions, with an approximate night vision distance of 25ft.
Designed for exterior vehicle installation with an IP68-rated, temperature-resistant camera housing.
PLEASE NOTE: This CVC-MBZ-02 version is specifically designed for Mercedes Vito models fitted with a single tail-lift rear door.
If your Mercedes Vito has barn-style rear doors, use the dedicated CVC-MBZ-04 barn-door camera instead.
Vehicle variations can exist within the listed production years. Compare the product photographs and dimensions with the original high-level brake light before ordering.
If connecting the 4-pin aviation camera connection to a standard RCA/phono video input, an additional converter adapter may be required.
The current InCarTec vehicle data identifies the relevant vehicle generation as Mercedes Vito 3rd Gen W447.
Always compare the original high-level brake light housing with the product photographs and dimensions before ordering.
| Sensor | 1/2.7 FH8536H + C2399 |
|---|---|
| Video signal | CVBS / AHD optional |
| TV system | NTSC / PAL optional |
| CVBS effective pixels | 728(H) × 488(V) |
| AHD 1080P effective pixels | 1920(H) × 1080(V) |
| AHD 720P effective pixels | 1280(H) × 720(V) |
| Resolution | 700–1000 TVL |
| Minimum illumination | 0.1 lux |
| Night vision distance | Approximately 25ft |
| IP rating | IP68 |
| Current consumption | 150mA |
| Power supply | 12V standard |
| Voltage compatibility | 5V–18V |
| Connector | 4-pin aviation female |
| Operating temperature | -30°C to +75°C, RH95% max |
| Storage temperature | -40°C to +85°C, RH95% max |
| Material | PC plastic |
| Housing properties | High- and low-temperature resistant, flame retardant |
Mercedes Vito W447 models can use different high-level brake light housings depending on the rear door configuration.
CVC-MBZ-02 is specifically for vehicles with a single tail-lift rear door.
If the vehicle has two barn-style rear doors, use the dedicated Mercedes Vito CVC-MBZ-04 barn-door brake light camera .
The camera is integrated into a replacement high-level brake light housing designed for compatible Mercedes Vito W447 tail-lift vehicles.
The housing measures approximately 488mm across.
Compare both the overall dimensions and the shape of the original brake light before ordering.
The camera specification supports CVBS / AHD and NTSC / PAL configurations.
The stereo, monitor or camera interface must support the same video format used by the camera. An AHD output requires an AHD-compatible display.
CVBS is a conventional analogue video format supported by many aftermarket stereos and reversing camera monitors.
Depending on the installation, this camera can be used with suitable:
If connecting to an original Mercedes display, a vehicle-specific camera interface may be required depending on the factory infotainment system fitted.
If the display uses a standard RCA/phono video input, an additional 4-pin aviation-to-RCA converter may be required.
CVC-MBZ-02 is designed for selected Mercedes Vito W447 models from 2016–2024 fitted with a single tail-lift rear door.
No. CVC-MBZ-02 is the tail-lift-door version. Mercedes Vito models with barn-style rear doors require the separate CVC-MBZ-04 camera.
Yes. The camera is integrated into a replacement high-level brake light housing to provide a discreet vehicle-specific installation.
The housing measures approximately 488mm across. Compare this dimension and the housing shape with the original unit before ordering.
Yes, provided the stereo has a compatible reversing camera input and supports the video format being used. An additional adapter may be required for a standard RCA/phono input.
Connection to a compatible factory Mercedes display may be possible using an additional vehicle-specific camera interface. The correct interface depends on the original infotainment system fitted.
AHD supports a higher-resolution image when used with a compatible AHD display. CVBS is a conventional analogue video format supported by many aftermarket stereos and reversing camera monitors.
The supplied specification gives an approximate night vision distance of 25ft, with minimum illumination rated at 0.1 lux.

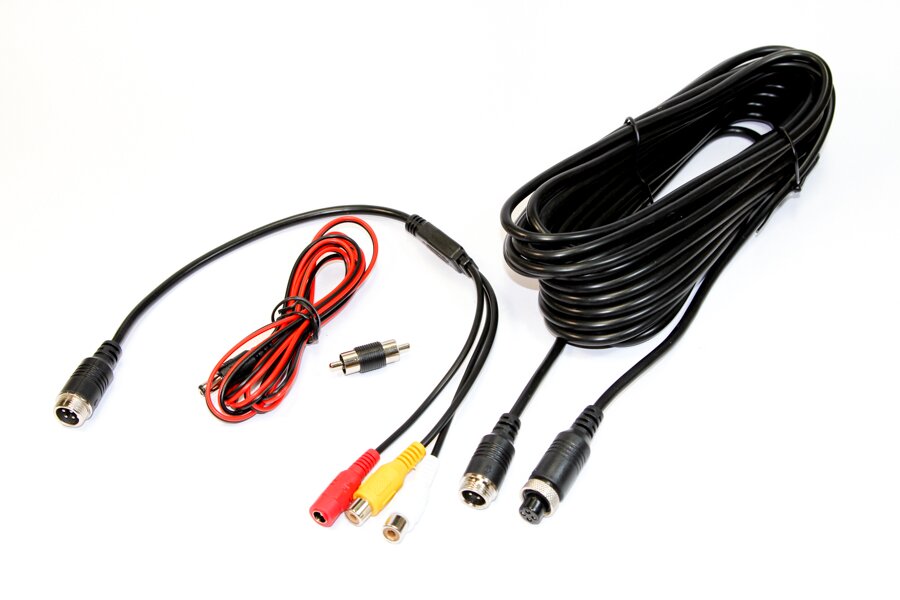

The camera includes a power connection cable and a 10-metre video cable for routing the connection through the vehicle.
Contact InCarTec with your Mercedes Vito model year, whether it has a tail-lift or barn doors, a photograph of the original high-level brake light and details of the stereo or monitor you plan to use.
Contact InCarTecBrand: InCarTec
Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Mercedes - Vito 3rd Gen (W447) (2015 - 2024)
