InCarTec Products > CAMERAS

Peugeot Expert, Citroen Dispatch, Toyota Proace (2016 >) high level brake light camera and monitor

CK-PUG-002
Price: £126.66 (£151.99 inc VAT)

Reverse view high level brake light camera and video monitor kit specially designed for Peugeot Expert, Citroen Dispatch and Toyota ProAce vehicle models from 2016 onwards

The camera included in this kit replaces the high level brake light at the rear of the vehicle and provides additional visual safety to the back of the vehicle, whilst maintaining its original appearance.

This kit comes complete with a 5 inch standalone windscreen video monitor, great to use when installing an aftermarket reverse camera without having to modify the original factory fitted system.

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing high level brake light on the vehicle.

Reverse view high level brake light camera and video monitor kit specially designed for Peugeot Expert, Citroen Dispatch and Toyota ProAce vehicle models from 2016 onwards

The camera included in this kit replaces the high level brake light at the rear of the vehicle and provides additional visual safety to the back of the vehicle, whilst maintaining its original appearance.

This kit comes complete with a 5 inch standalone windscreen video monitor, great to use when installing an aftermarket reverse camera without having to modify the original factory fitted system.


High level brake light camera (CVC-PUG-002)

Special rear view camera specially designed for Peugeot Expert, Citroen Dispatch and Toyota ProAce vehicles from 2016 onwards

This camera secures into the third (high level) brake light housing on the back of the vehicle and provides additional visual safety to the back of the vehicle, whilst still maintaining it's original appearance.


Product Features

  • 12v power
  • Colour CMOS image, NTSC.
  • 150° View Angle
  • IP68 Waterproof
  • Includes power cable and 10 metre video cable

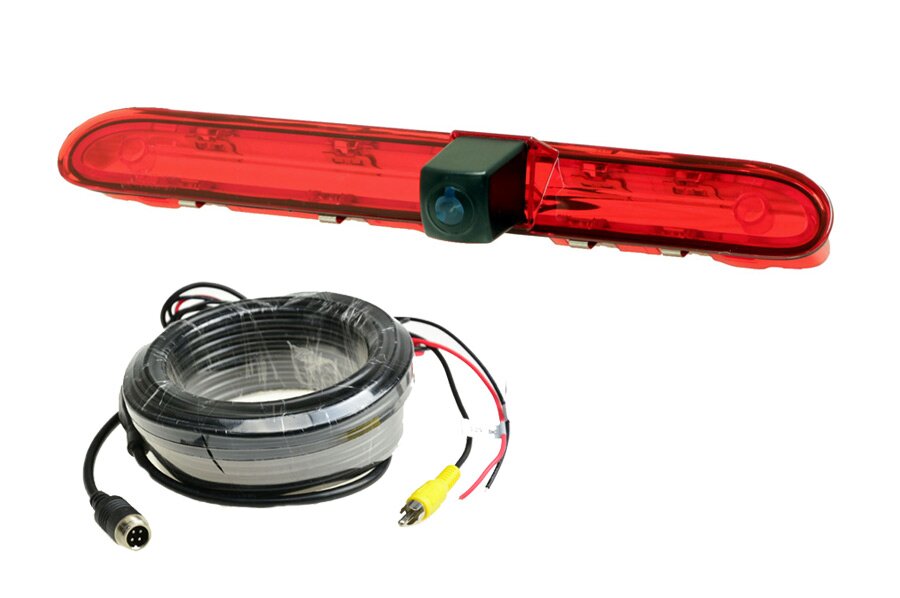

A 10m extension cable is supplied, as shown in the image below. The camera has a secure 4 pin screw connector, the extension lead extends from the 4 pin connector and terminates with a phono video connector and power wires. The phono and power connections are universal for connecting to an aftermarket monitor.

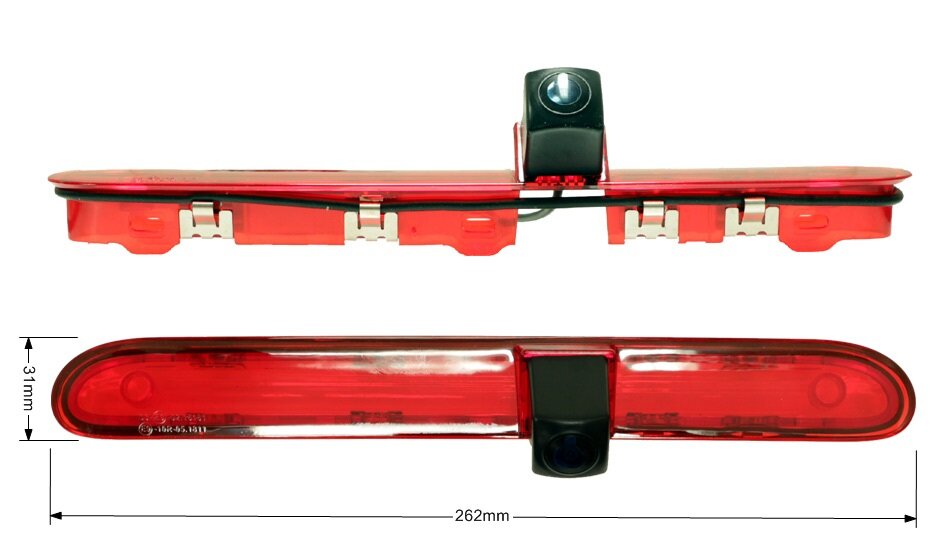

Below are images showing the camera with the supplied cable and the camera with measurements.


PLEASE NOTE

Whilst we do our best to make sure our product compatibility listings are as accurate as possible, there may still be exceptions. Different vehicle shapes may require different cameras. Please check that the image of the camera matches the existing brake light on the vehicle.


5 inch video monitor (M-S5.0)

5 inch standalone windscreen video monitor with suction mount bracket.

These monitors are great to use when installing an aftermarket reverse camera without having to modify the original factory fitted system.

Comes with a 4 ratchet (4R) style mounting point for use with other 4R series mounts and brackets.


Main Features

- High brightness/resolution digital 5" wide-screen LCD panel applied.

- Super slim design, easy to mount on top of dashboard or window glass.

- Dual video input, standard RCA connectors. Shielding cables used to avoid signal interference when both channels are connected to cameras or video.

- Adjustable suction mount bracket.

- Adjustable brightness and colour intensity.

- Rear 4 ratchet (4R) style mounting point for use with other 4R series mounts and brackets. (see below picture)

- Guidelines only available when used with a camera with guidelines.


Specifications

- Screen type: TFT LCD

- Screen size: 5" color

- Resolution:480*RGB*272

- Brightness:400cd/m2

- Display format: 16:9

- Video input: 2-channel

- Voltage: 12V


Installation

- Can be powered from a 12v ignition or reverse feed.

- Sometimes the reverse power feed from the reversing lights may not be strong enough to power the monitor. A separate power feed relay (10-641) may be required to give a better 12v power feed.


Brand: InCarTec

Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Citroën - Dispatch (Space Tourer) (2016 >)
Fiat - Scudo 3rd gen (2022 >)
Fiat - Ulysse 3rd Gen (2022 >)
Peugeot - Expert Mk III (Traveller) (2016 >)
Toyota - ProAce (2016 >)
Vauxhall - Vivaro C (Vivaro/Zafira Life) (2019 >)
