Smartphone/ Camera integration for Audi Q3 (14-18) with MMI 3G+ HIGH Systems (7 INCH WITH NAVI)

Smartphone/ Camera integration for Audi Q3 (2014-2018) car models with MMI 3G+ High Systems (7 INCH SCREEN WITH NAVI)

PLEASE NOTE: This interface installation should only be carried out by professional car audio technicians or relevant car audio experience

PLEASE READ INSTLLATION AND INSTRUCTIONS BEFORE PURCHASING!

Features

• Wireless/wired CarPlay
• Wireless/wired Android Auto
• iPhone wireless Airplay
• Wired Android phone Autolink
• Front view Camera in
• Rearview camera in
• HDMI input
• USB multimedia playback
• Amplifier
• IPAS
• PDC

Specifications

• Built-in CarPlay, Android Auto, and screen mirroring 3 in 1 module
• Built-in 5.8G and 2.4G WIFI for a stable connection
• Built-in BT 4.0
• Built-in DSP and adjustable volume for Navi, phone call, multimedia, and voice command system
• Simple Menu setup instead of DIP for IPAS, PDC, and other settings
• Support PDC (Parking Distance Control) and FPG (Flexible Parking Guidelines), OEM parking style
• Adjustable parking guidelines position(available at March 2021)
• Auto compatible with PAL and NTSC CVBS camera
• Support both OEM microphone and add on the microphone
• Support voice command control, OEM command system, and steering wheel  control
• Support both left and right drive mode
• Support CarPlay icon and power on logo customization

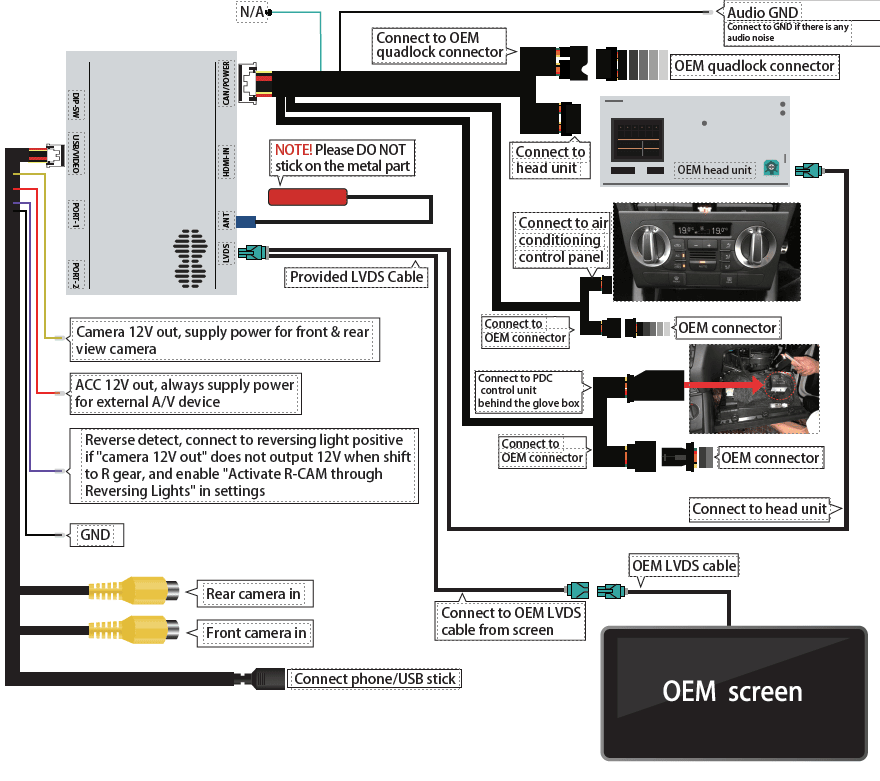

Installation

This interface installation should only be carried out by professional car audio technicians or relevant car audio experience!

PLEASE READ INSTRUCTIONS BEFORE PURCHASING!

Is my Audi Q3 Low Version (RMC) OR High Version (HN+R)?

Frist check to see if your car has original navigation (OEM GPS) or not.

Usually, if the car has "HN+R " in the MMI setup menu, it contains factory navigation (MMI 3G+ High version).

If the car has "RMC" (low version), normally it doesn't have an original navigation system.

Their power harnesses are also different (As shown below)

What MMI System does my audi have?

The easiest way to check which MMI system you have is to check the software version that is loaded in the system. To do this, enter the car menu by pressing the CAR button, then press SETUP or MENU, then select the “Version” submenu and read the value from the line marked with the letters “SW“.

MMI 2G: SW: XX-XX XX.X.X XXXX

MMI 3G Low/Basic: BNav_XX_XXXXX

MMI 3G High: HNav_XX_XXXXX

MMI 3G+: HN+_XX_XXXXX or HN+R

MMI RMC: RMC_XX_XXXXX

MMI Mib1: MHIG_XX_XXXX

MMI Mib2: MHI2_XX_XXXX

MMI MSTD: MSTD_XX_XXXX
