Vehicle-specific high-level brake light reversing camera for selected Renault Trafic, Vauxhall Vivaro, Nissan NV300, Fiat Talento, Nissan Primastar and Mitsubishi Express models.The camera secures into the vehicle’s third high-level brake light housing for a discreet OEM-style installation and elevated rear view. Available with CVBS/AHD and NTSC/PAL video options, infrared night vision, IP68-rated housing and a 4-pin aviation connection. Includes a power cable and 10-metre video cable.

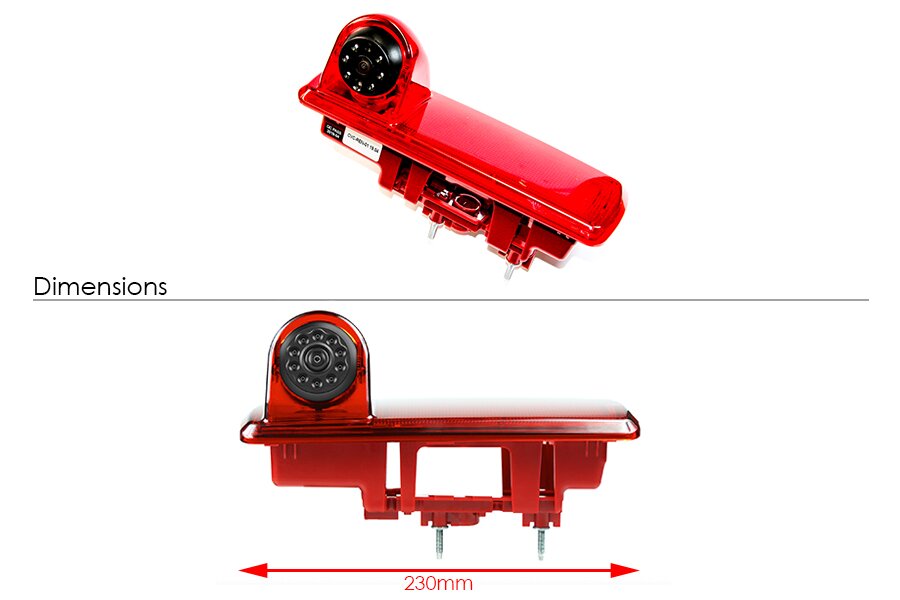

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing high level brake light on the vehicle.
Improve rear visibility with this vehicle-specific high-level brake light reversing camera for selected Renault Trafic, Vauxhall Vivaro, Nissan NV300, Fiat Talento, Nissan Primastar and Mitsubishi Express models.
The camera secures into the vehicle's third high-level brake light housing, creating a discreet OEM-style installation while maintaining the original appearance of the rear of the vehicle.
Its elevated position provides a useful view of the area behind the van when reversing, parking or manoeuvring, making it well suited to commercial vans, campervans and vehicles with restricted rear visibility.
Designed around the high-level brake light housing used on selected Renault, Vauxhall, Nissan, Fiat and Mitsubishi vans.
Fits into the third brake-light position for a cleaner and more integrated installation than a universal reversing camera.
High-level positioning provides a useful view behind the vehicle when parking and manoeuvring.
Available with CVBS or AHD video formats for use with compatible aftermarket stereos, monitors and camera interfaces.
High-brightness infrared LED support helps provide rear visibility in low-light conditions, with a night vision distance of approximately 30ft.
Designed for exterior vehicle installation with an IP68-rated, temperature-resistant housing.
PLEASE NOTE: This camera is not suitable for high-roof vans.
Vehicle body and brake-light variations can exist within the listed production years. Compare the product photographs and dimensions with the existing high-level brake light before ordering.
If connecting the 4-pin aviation camera connection to a standard RCA/phono video input, an additional converter adapter may be required.
This camera is not suitable for high-roof vans. Always compare the original brake light housing with the product photographs and dimensions before ordering.
| Sensor | 1/2.7 FH8536H + C2399 |
|---|---|
| Video signal | CVBS / AHD optional |
| TV system | NTSC / PAL optional |
| CVBS effective pixels | 728(H) × 488(V) |
| AHD 1080P effective pixels | 1920(H) × 1080(V) |
| AHD 720P effective pixels | 1280(H) × 720(V) |
| Resolution | 700–1000 TVL |
| Minimum illumination | 0.1 lux; 0 lux with LED active |
| IR LED | High-brightness LED |
| Night vision distance | Approximately 30ft |
| IP rating | IP68 |
| Current consumption | 150mA |
| Power supply | 12V standard |
| Voltage compatibility | 5V–18V |
| Connector | 4-pin aviation female |
| Operating temperature | -30°C to +75°C, RH95% max |
| Storage temperature | -40°C to +85°C, RH95% max |
| Material | PC plastic |
| Housing properties | High- and low-temperature resistant, flame retardant |
This CVC-REN-01 camera is not suitable for high-roof versions of the listed vehicles.
Different roof heights and rear-body configurations can use different high-level brake light housings, so the existing housing should always be checked before ordering.
The camera specification supports CVBS / AHD and NTSC / PAL configurations.
The stereo, monitor or camera interface must support the same video format used by the camera. An AHD camera output requires an AHD-compatible display.
CVBS is a conventional analogue video format supported by many aftermarket stereos and reversing camera monitors.
Depending on the installation, this camera can be used with suitable:
If the display uses a standard RCA/phono video connection, an additional 4-pin aviation-to-RCA converter may be required.
The current compatibility list includes Renault Trafic III 2014–2022 and Trafic III Phase 2 models from 2022 onwards.
The current InCarTec compatibility list includes Vauxhall / Opel Vivaro B models from 2015–2020.
Yes. The current compatibility list includes Nissan NV300 2014–2021 and Nissan Primastar models from 2022 onwards.
Yes. Fiat Talento 2nd Generation models from 2016–2022 are included in the current compatibility list.
The current compatibility list includes Mitsubishi Express models from 2020 onwards.
No. CVC-REN-01 is not suitable for high-roof versions of the listed vehicles. Always check the existing brake-light housing before ordering.
Yes, provided the stereo has a compatible reversing camera input and supports the video format being used. An additional adapter may be required for a standard RCA/phono input.
AHD supports a higher-resolution image when paired with a compatible AHD display. CVBS is a conventional analogue video format supported by many aftermarket stereos and reversing camera monitors.
Yes. The specification includes a high-brightness infrared LED, 0 lux operation with the LED active and an approximate night vision distance of 30ft.
Contact InCarTec with your vehicle make, model, year and roof height, together with a photograph of the original high-level brake light and details of the stereo or monitor you plan to use.
Contact InCarTecBrand: InCarTec
Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Fiat - Talento 2nd Gen (2016 - 2022)
Mitsubishi - Express (2020 >)
Nissan - NV300 (2014 - 2021)
Nissan - Primastar (2022 >)
Renault - Trafic III (2014 - 2022)
Renault - Trafic III Phase 2 (2022 >)
Vauxhall / Opel - Vivaro B (2015 - 2020)
