BLAM Signature S165.80+ 165mm High-Sensitivity 2-Way Component Car Speakers – 120W

The BLAM SIGNATURE Menu S165.80 + promises first-class sound quality in your car. It is an active 2-way component speaker system that includes two 165mm (6.5 Inch) speakers, two 20mm (3/4 Inch)high resolution dome tweeters and four external crossovers . With highly technical features such as playback frequency range of 60 Hz-43 kHz, input impedance 2Ω and output sound pressure level 94.3 dB, it offers outstanding sound. The 6.5 Inch (165 mm) speaker set also has a rated power of 60W and a crossover frequency of 3.5 KHz, ensuring an optimal listening experience. Convince yourself of the quality that BLAM delivers with the SIGNATURE Menu S165.80+

Composition

WS 6.80 HIGH SENSITIVITY WOOFER

• 165mm Woofer/ Speakers

• Max power 120 W / Nominal power 60 W
• Frequency response 60 Hz – 7 kHz
• Sensitivity 94.3 dB
• Impedance 2 Ω
• Mounting depth 73.8 mm
• Die cast aluminium basket – Ultra rigid carbon fiber membrane – IIR peripheral surround – Long life “conex” spider – 28 mm voice coil on fiberglass former – 80 x 17 mm magnetic motor – Machined aluminium phase plug – Gold plated terminal.

TS 20 HR HIGH RESOLUTION TWEETER

• 20mm (3/4”) soft dome tweeter
• Frequency response 2.5 KHz-43kHz
• Sensitivity (2.83 V / 1m) 88,3dB – Impedance 5 Ω
• Compact mounting dimensions – High efficiency magnet (N38H neodymium) – Ferrofluid for high power handling – Angled mounting support

BFT01 HIGH QUALITY CROSSOVER

• 12 dB/octave high-pass crossover
• Adjustable tweeter level +3 dB, 0 dB or -3 dB
• Crossover frequency 4.5 kHz

BFW01 HIGH QUALITY CROSSOVER

• Low pass 6 dB/octave crossover
• Crossover frequency 3.5 kHz

Technical Specifications (Speakers)

• Component Speaker

• Max power 120 W
• Nominal power 60 W
• Impedance 2 Ω
• Freq. Response 60 Hz - 7 KHz
• Sensitivity (2,83V/1m) 94,3 dB
• Magnet Ferrite
• Magnet size Ø x h 80 x 17 mm 3,150‘’x 0,669‘’
• Total driver displacement 0,3 l 0,011 cf
• Weight of one component 1 kg 2,205 lb
• Voice coil Ø 28 mm 1,102“
• Voice coil height 12 mm 0,472“
• Cone Carbon fiber

Technical Specifications Sheet

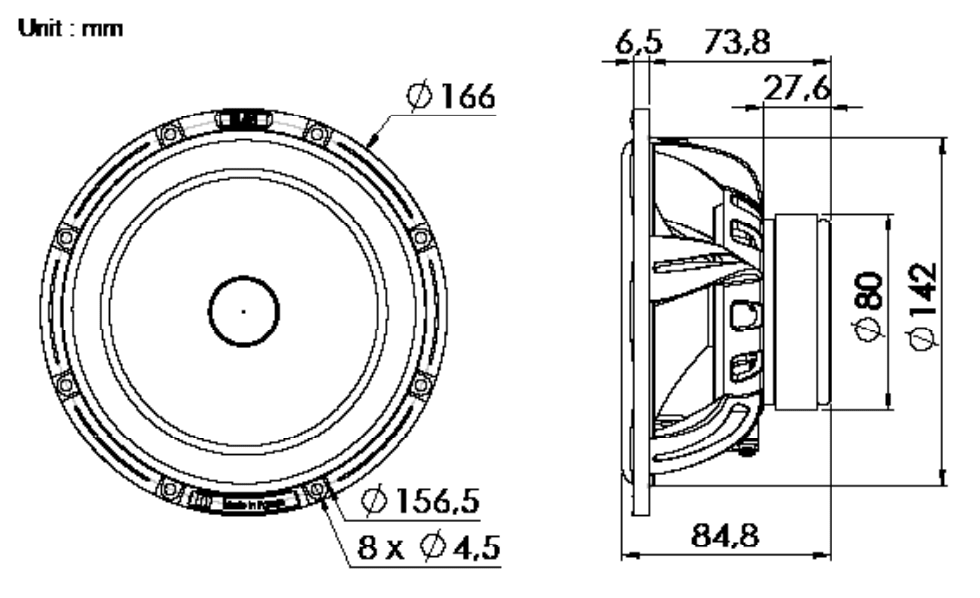

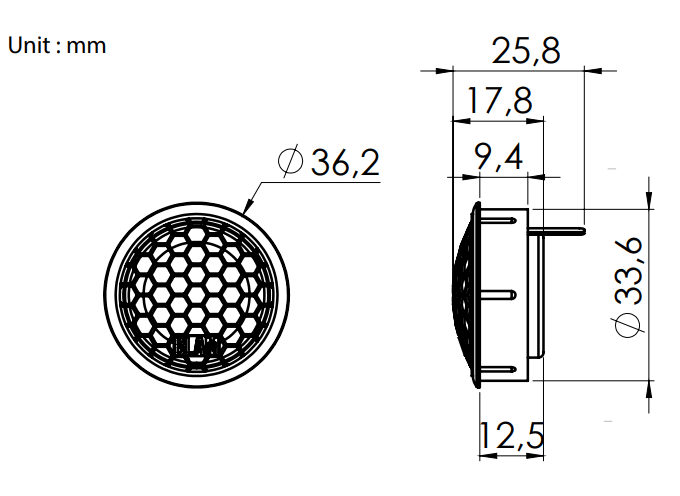

Dimensions
