BMW 1 Series (E81/E82/E87/E88) 2007-2013 9 Inch Perfect Fit Stereo Fitting Kit – Automatic Air Conditioning & Steering Wheel Controls

PF-113 Compatibility

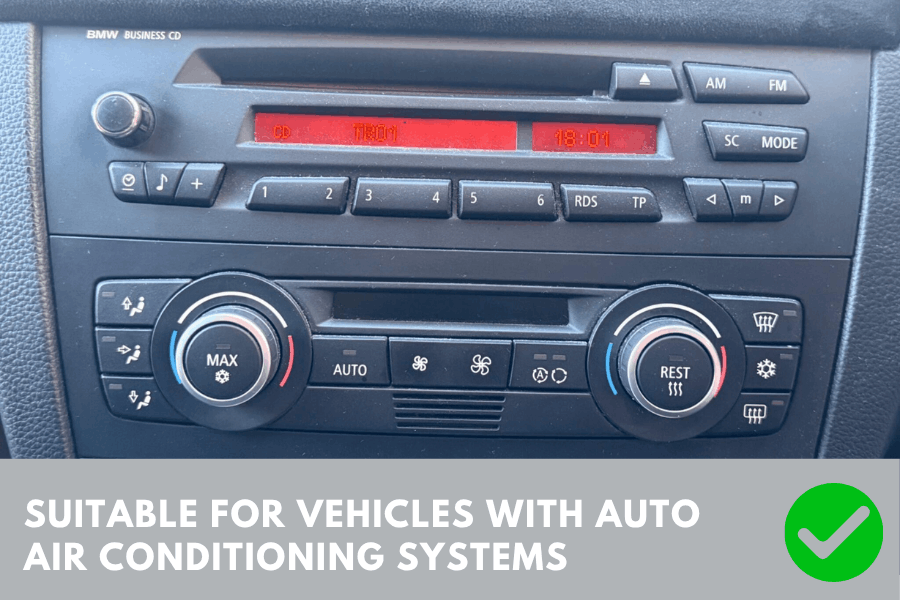

This 9 inch stereo upgrade fitting kit is designed for BMW 1 Series (E81/E82/E87/E88) 2007–2013 models with original automatic climate controls

PF-113 Kit Contents

This head unit fitting kit includes:

Fakra to DIN antenna adapter cable

Male Fakra to Male DIN antenna adapter cable. This cable adapts from a Farka antenna connection at the back of the cars original radio to a standard aftermarket DIN antenna connection to allow the fitting of an aftermarket radio upgrade. This is a passive adapter cable, not suitable for cars that need a phantom power supply to turn on the antenna amplifier.

Steering wheel control interface

Steering wheel control interface and adapter cable for various BMW and Mini cars to fit an aftermarket radio upgrade. The cable adapts from the Quadlock connector in the car to standard ISO aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable. The CANbus steering wheel control interface is built in to the adapter cable for a plug and play installation. This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume, track skip, source and phone buttons. The CANbus interface will also provide CANbus key present ignition, illumination, speed pulse, reverse gear and handbrake outputs. A key present ignition means the stereo will turn on with the first click of the key and stay on until the key is removed from the ignition barrel.

Some BMW cars go into Eco mode and the +12V supply to the radio drops causing the memory of the new radio to be lost, these cars will need a power supply directly from the battery to be supplied.

Universal Patch Lead

This cable plugs into the ICT control box and connects to the 3.5mm socket or single wire on the back of the new head-unit.

This item has loose wires and leads so it can be configured to suit the brand of radio being fitted.

BMW 1 Series (E81/E82/E87/E88) Auto Air Con 9 inch fascia adapter (MATT BLACK)

Designed specifically for BMW 1 Series (E81/E82/E87/E88) 2007–2013 models with original automatic climate controls, this fascia is designed for installation of the Pioneer 9” stereo. Built as a bespoke fit for vehicles in the application list, it adapts the dashboard aperture after removing the factory stereo to accept a universally mounted 4-screw head unit. This ensures compatibility with the Pioneer 9 inch system while retaining the original OEM-style appearance of the dashboard.
