BMW 3 Series E46 1999-2006 9 Inch Perfect Fit Stereo Fitting Kit – OEM Navigation Quadlock

Name: BMW 3 Series E46 1999-2006 9 Inch Perfect Fit Stereo Fitting Kit – OEM Navigation Quadlock
Brand: InCarTec
SKU: PF-116-NAVQ
Price: 139.99 GBP
Availability: InStock

PF-116-NAVQ

Price: £139.99 (£116.66 ex. VAT)

Complete stereo fitting kit for BMW E46 3 Series 1999-2006 models equipped with the factory OEM navigation system and Quadlock connections. Compatible with selected 9-inch Perfect Fit stereos including the Pioneer SPH-PF97BT, Alpine INE-AX809 and Kenwood DMX80AXS. Includes a vehicle-specific fascia panel, CAN-Bus steering wheel control interface, Quadlock integration harness and aerial adapter for a professional OEM-style installation.

PLEASE NOTE: If fitting to a Harman Kardon system and you are experiencing distorted audio at a low volume, please use this interface with a 20-273

Full Description
Compatibility list

BMW 3 Series E46 1999-2006 9 Inch Perfect Fit Stereo Fitting Kit – OEM Navigation Quadlock

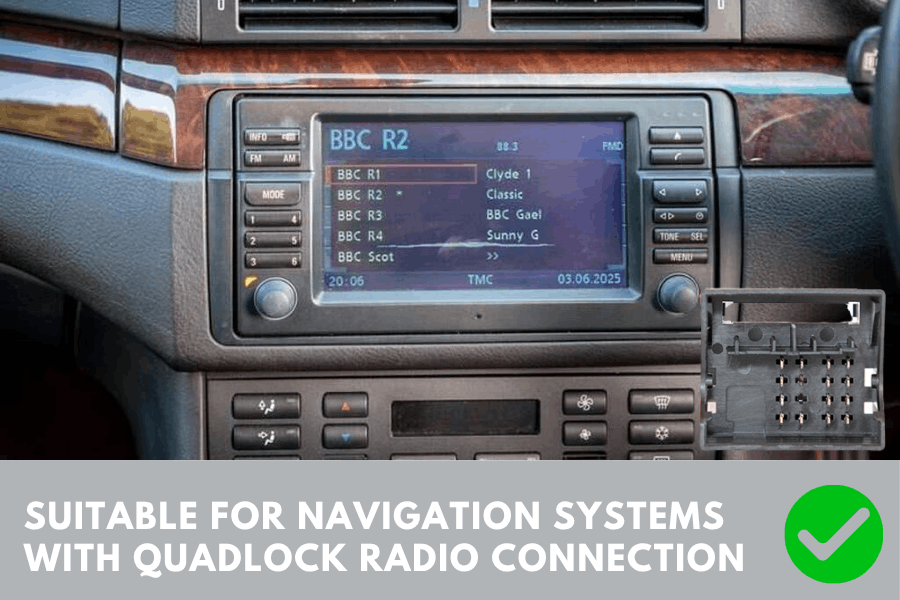

Upgrade your BMW 3 Series (E46) from 1999 to 2006 with this dedicated 9-inch Perfect Fit fitting kit, designed specifically for vehicles equipped with factory navigation systems and a rear-mounted tuner unit with Quadlock connectors.

Designed for 9 inch Perfect Fit stereos such as the SPH-PF97BT (sold separately), this kit allows installation of a modern floating-style touchscreen head unit while retaining key factory functionality. The included K-Bus steering wheel control interface ensures that the original steering wheel audio controls continue to operate with the new Pioneer stereo.

As these vehicles feature a rear-mounted radio module, the kit includes a 5 metre Quadlock extension cable along with a 5 metre Fakra aerial extension and Fakra to DIN adapter. These components allow all necessary connections to be routed from the rear of the vehicle to the new head unit in the dashboard.

A 9-inch fascia adapter panel is included to provide a clean OEM-style dashboard finish. The supplied Pioneer patch lead ensures seamless integration between the steering wheel control interface and the head unit.

This complete installation solution is specifically designed for E46 navigation-equipped vehicles with Quadlock wiring, where standard kits are not compatible.

PF-116-NAVQ Vehicle Compatibility

Suitable for BMW 3 Series (E46) 1999–2006 models equipped with factory navigation systems and rear-mounted tuner units with Quadlock connections.

PLEASE NOTE: If fitting to a Harman Kardon system and you are experiencing distorted audio at a low volume, please use this interface with a 20-273

PF-116-NAVQ Kit Contents

This head unit fitting kit includes:

Antenna extension

This cable is used to extend the antenna connection by 4.5 metres

Female ISO to Male DIN antenna adapter

This cable converts the cars existing ISO aerial plug to an aftermarket DIN type used by Clarion, JVC, Pioneer, Sony and other Japanese, Chinese and American radio manufacturers.

Steering wheel control interface

Steering wheel control interface and adapter cable for vehicles with original navigation screens that have the tuner unit in the rear of the car with the round pin connector.. The cable adapts from the 17 Round Pin connector in the car to standard ISO aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable. The CANbus steering wheel control interface is built in to the adapter cable for a plug and play installation. This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio.

Universal patch lead for 29 series interface

This cable plugs into the ICT control box and connects to the 3.5mm socket or single wire on the back of the new head-unit.

This item has loose wires and leads so it can be configured to suit the brand of radio being fitted.

BMW 3 Series BMW 3 Series (E46) 1999 to 2006 9 inch fascia adapter (MATT BLACK)

Designed specifically for BMW 3 Series (E46) from 1999 to 2006, this fascia is designed for installation of the Pioneer 9” stereo. Built as a bespoke fit for vehicles in the application list, it adapts the dashboard aperture after removing the factory stereo to accept a universally mounted 4-screw head unit. This ensures compatibility with the Pioneer 9 inch system while retaining the original OEM-style appearance of the dashboard.

Brand: InCarTec

Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
BMW - 3 Series (E46) (1999 - 2006)
BMW - 3 Series (E46/5) Compact (2000 - 2004)

A PDF of instructions for this product can be found here.
