BMW E46 (1999–2006) Pioneer PF97 9” Stereo Package with OEM Navigation & Quadlock

Name: BMW E46 (1999–2006) Pioneer PF97 9” Stereo Package with OEM Navigation & Quadlock
Brand: InCarTec
SKU: PF-116-NAVQ-PIO1
Price: 539.99 GBP
Availability: InStock

PF-116-NAVQ-PIO1

Price: £539.99 (£449.99 ex. VAT)

Upgrade your BMW 3 Series (E46 1999–2006) equipped with factory navigation and rear-mounted tuner using a quadlock connector with this Pioneer 9-inch perfect fit stereo package. This kit comes with the Pioneer PF97, offering wireless Apple CarPlay, Android Auto, Bluetooth hands-free calling and music streaming on a large responsive 9” touchscreen display. The package retains factory steering wheel audio controls and includes extended wiring, aerial extension and 9” fascia panel for a clean OEM-style installation.

PLEASE NOTE: If fitting to a Harman Kardon system and you are experiencing distorted audio at a low volume, please use this interface with a 20-273

Full Description
Compatibility list

BMW 3 Series (E46 Nav Quadlock) – Pioneer PF97 9” Stereo Kit with Steering Control Retention

This Pioneer 9-inch perfect fit stereo package is designed specifically for BMW 3 Series (E46) models from 1999 to 2006 fitted with original factory navigation systems where the tuner unit is located in the rear of the vehicle and uses a quadlock connector. The included quadlock extension harness and K-Bus steering wheel control interface allow the new head unit to integrate with the factory wiring, ensuring the original steering wheel audio controls continue to function correctly.

This kit comes with the Pioneer PF97, delivering wireless Apple CarPlay, Android Auto, Bluetooth hands-free calling and music streaming in a large, responsive 9” touchscreen display, providing a major upgrade over the original navigation system. The kit includes 5m power/speaker extension and aerial extension cables to connect from the rear-mounted tuner to the dashboard, along with a 9-inch fascia adapter panel to ensure a clean OEM-style finish.

PF-116-NAVQ-PIO1 Vehicle Compatibility

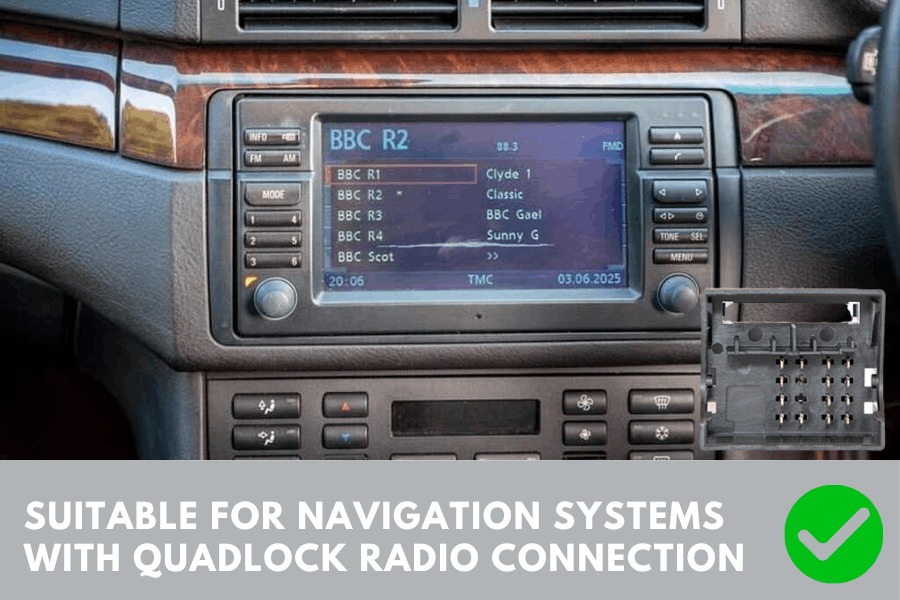

Suitable for BMW 3 Series (E46) 1999–2006 models equipped with factory navigation systems and rear-mounted tuner units with Quadlock connections.

PLEASE NOTE: If fitting to a Harman Kardon system and you are experiencing distorted audio at a low volume, please use this interface with a 20-273

PF-116-NAVQ-PIO1 Kit Contents

This head unit fitting kit includes:

Antenna extension

This cable is used to extend the antenna connection by 4.5 metres

Female ISO to Male DIN antenna adapter

This cable converts the cars existing ISO aerial plug to an aftermarket DIN type used by Clarion, JVC, Pioneer, Sony and other Japanese, Chinese and American radio manufacturers.

Steering wheel control interface

Steering wheel control interface and adapter cable for vehicles with original navigation screens that have the tuner unit in the rear of the car with the round pin connector.. The cable adapts from the 17 Round Pin connector in the car to standard ISO aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable. The CANbus steering wheel control interface is built in to the adapter cable for a plug and play installation. This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio.

Pioneer Patch Lead

Adapter lead to pair an InCarTec 49- series steering wheel control interface to the steering wheel remote input of a Pioneer aftermarket radio.

This short adapter lead connects to the 12 pin micro molex connector on the 49- series interface box and to the steering wheel remote input on the back of a Pioneer radio. The steering remote input on a Pioneer radio is usually labelled "W/R" (wired remote)

BMW 3 Series BMW 3 Series (E46) 1999 to 2006 9 inch fascia adapter (MATT BLACK)

Designed specifically for BMW 3 Series (E46) from 1999 to 2006, this fascia is designed for installation of the Pioneer 9” stereo. Built as a bespoke fit for vehicles in the application list, it adapts the dashboard aperture after removing the factory stereo to accept a universally mounted 4-screw head unit. This ensures compatibility with the Pioneer 9 inch system while retaining the original OEM-style appearance of the dashboard.

Pioneer SPH-PF97BT 9” Wi-Fi® Car Stereo with Apple CarPlay & Android Auto

The Pioneer SPH‑PF97BT is a premium 9″ multimedia car stereo designed for seamless in-dash integration with a wide range of vehicles, thanks to its Perfect Fit non-DIN chassis. Featuring both wireless and wired Apple CarPlay® and Android Auto™, it allows effortless access to apps like maps, calls, messages, and music via its large, responsive capacitive touchscreen. With built-in Wi-Fi®, Bluetooth®, and WebLink® 3.0, you get a connected driving experience without the clutter of cables.

Audio enthusiasts will appreciate the powerful 13-band EQ, FLAC support, subwoofer control, and high/low-pass filters for customised sound. Dual camera inputs, RCA AV in/out, and 3 pre-outs provide flexibility for system expansion, while accessories like a GPS antenna, external mic, and USB extension are included. With smart connectivity, modern aesthetics, and advanced audio control, the SPH‑PF97BT is an ideal upgrade for drivers who want both convenience and performance.

PLEASE NOTE

This radio is designed exclusively for use with 9" custom frame fascia panels. It mounts securely using a 4-screw system at the rear of the fascia panel. This unit cannot be installed as a standard 1-DIN or 2-DIN stereo and is not compatible with traditional 1 or 2-DIN fitting kits.

Main Features

Android Auto™

Automatically brings you useful information in simple cards to minimise distraction and keep you focused on the road.

Apple CarPlay®

A smarter, safer way to use your iPhone in the car for directions, calls, messaging, and music while staying focused.

Aux-in

Connect compatible devices easily for convenient audio playback.

Bluetooth®

Built-in wireless connectivity for hands-free calling and audio streaming, keeping you safe and legal.

Capacitive Touchscreen

Responsive multi-touch gestures including pinch-to-zoom, swipe, and scroll controls at your fingertips.

FLAC Support

Play lossless FLAC digital audio files at CD quality without conversion.

Vehicle Bus

Connect an optional adapter to display vehicle info like gauges, climate control, and parking assist (adapter sold separately).

Key Features

Installation Type:

NON-DIN (Perfect Fit, not 1-DIN or 2-DIN)

Navigation:

Via Android Auto™
Via Apple CarPlay®

Screen:

9.0″ Capacitive Touchscreen

Apple CarPlay®:

Wireless & Wired Connection

Android Auto™:

Wireless & Wired Connection

Connectivity:

Built-in Wi-Fi®
WebLink® Smartphone Mirroring
Bluetooth® Hands-Free & Audio Streaming
Vehicle Bus Compatible

Customisation:

Customisable Key & Display Illumination
Multi-Colour Button Illumination

Audio Features

13-Band Graphic Equaliser
High Pass Filter
Low Pass Filter
FLAC Audio Playback
Subwoofer Control

Tuner Features

RDS FM Radio

Connections

Camera Inputs: 2 (Front & Rear)
RCA AV Input: 1
RCA Rear AV Output
RCA Pre-Outs: 3 (Front, Rear, Subwoofer)
AUX-In: 1 Rear AV Aux-In

Included Accessories

External Bluetooth Microphone
GPS Antenna
USB Extension Cable

For more details and specification see the Pioneer website

Brand: InCarTec

Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
BMW - 3 Series (E46) (1999 - 2006)
BMW - 3 Series (E46/5) Compact (2000 - 2004)

A PDF of instructions for this product can be found here.
