BMW X5 E53 2000-2006 9 Inch Perfect Fit Stereo Fitting Kit – OEM Navigation & DSP

PF-117-DSP Compatibility

PF-117-DSP Kit Contents

This head unit fitting kit includes:

DSP amplifier bypass cable

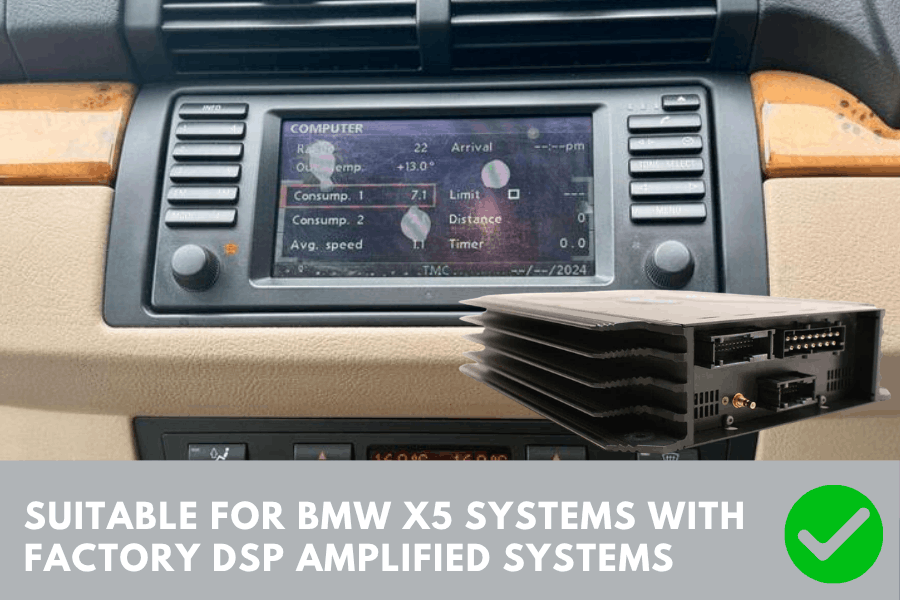

Adapter cable to bypass the original DSP amplifier in a BMW X5 car with original sat nav.

This adapter cable allows the fitting of an aftermarket stereo upgrade by bypassing the original DSP amplifier in the car. The original amplifier uses a digital data audio signal and therefore cannot be used with an aftermarket radio. the cable bypasses the original amplifier allowing the new radio to play audio directly to the cars speakers.

The original amplifier is located behind the rear left quarter panel in the boot. The amp bypass cable connects to the speaker connectors from the amplifier, it also connects to the quadlock connector from the original tuner module located under the boot floor next to the battery. A 5 metre extension is provided to then extend these audio and power connections to the dashboard. The cable then terminates with a quadlock connector, this allows for the fitting of an ISO radio adapter cable or a steering wheel control adapter cable to fit to the new radio.

The cable will also pick up the steering wheel control signal from the tuner module and extend the signal to the quadlock connector in the dashboard, this allows for a steering control interface to work without any extra wiring. The extension also accommodates for speed pulse and reverse gear signals to be extended to the steering control interface, these are loose wires on the adapter cable that need to be hardwired at the back of the car.

Antenna extension cable

5 metre male to female Fakra antenna cable extension. With water blue universal Fakra cable. Used to extend the fakra connector when fitted at the rear of a car

Antenna adapter cable

Male Fakra to Male DIN antenna adapter cable. This cable adapts from a fakra antenna connection at the back of the cars original radio to a standard aftermarket DIN antenna connection to allow the fitting of an aftermarket radio upgrade. This is a passive adapter cable, not suitable for cars that need a phantom power supply to turn on the antenna amplifier.

Steering wheel control adapter cable

This cable adapts from the original connector in the car, known as a quadlock, to standard aftermarket connectors for the new stereo, known as ISO connectors.

The built in interface will allow the original audio controls on the steering wheel to work with an aftermarket radio.

This adapter cable is designed to be plug and play installed along with the BMW X5 amplifier bypass cable. When used with the bypass cable, it will also provide speed pulse and reverse gear signals to the new radio.

Universal patch lead for 29 series interface

This cable plugs into the ICT control box and connects to the 3.5mm socket or single wire on the back of the new head-unit. This item has loose wires and leads so it can be configured to suit the brand of radio being fitted.

BMW X5 (E53) 2000 to 2006 9 inch fascia adapter (MATT BLACK)

Designed specifically for BMW X5 (E53) from 2000 to 2006 without navigation and standard audio, this fascia is designed for installation of the Pioneer 9” stereo. Built as a bespoke fit for vehicles in the application list, it adapts the dashboard aperture after removing the factory stereo to accept a universally mounted 4-screw head unit. This ensures compatibility with the Pioneer 9 inch system while retaining the original OEM-style appearance of the dashboard.
