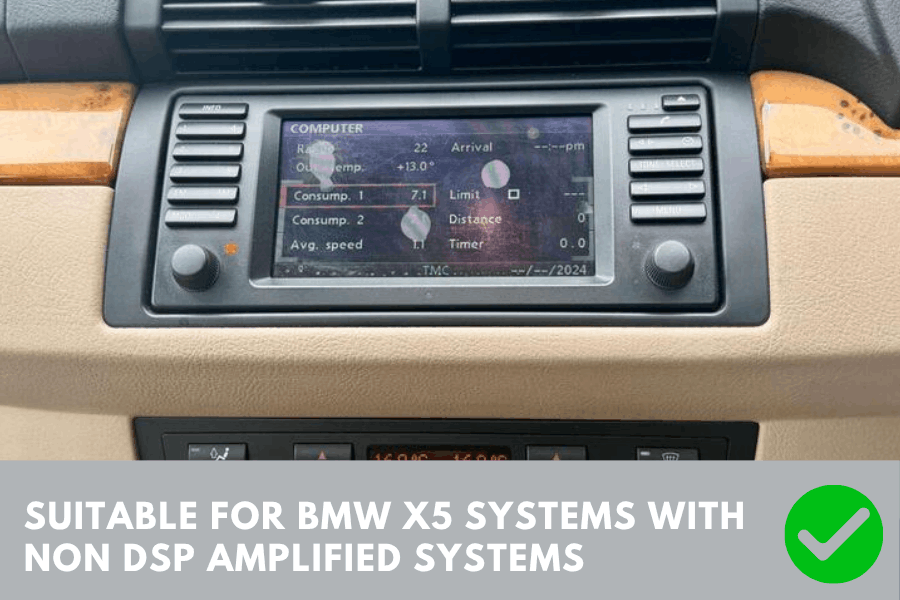

BMW X5 (E53 with Factory Navigation) – Pioneer PF97 9” Stereo Kit with Steering Control Retention

PF-117-NAV-PIO1 Compatibility

PF-117-NAV Kit-PIO1 Contents

This head unit fitting kit includes:

Quadlock extension cable

This cable is for extending the quadlock from the Tuner in the rear boot of some cars like BMW X5  and Range Rover models.

Antenna extension cable

5 metre male to female Fakra antenna cable extension. With water blue universal Fakra cable. Used to extend the fakra connector when fitted at the rear of a car

Antenna adapter cable

Male Fakra to Male DIN antenna adapter cable. This cable adapts from a fakra antenna connection at the back of the cars original radio to a standard aftermarket DIN antenna connection to allow the fitting of an aftermarket radio upgrade. This is a passive adapter cable, not suitable for cars that need a phantom power supply to turn on the antenna amplifier.

Steering wheel control interface

Steering wheel control interface and adapter cable for various BMW cars to fit an aftermarket radio upgrade. The cable adapts from the Quadlock connector in the car to standard ISO aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable. The CANbus steering wheel control interface is built in to the adapter cable for a plug and play installation. This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio.

Pioneer Patch Lead

Adapter lead to pair an InCarTec 49- series steering wheel control interface to the steering wheel remote input of a Pioneer aftermarket radio. This short adapter lead connects to the 12 pin micro molex connector on the 49- series interface box and to the steering wheel remote input on the back of a Pioneer radio. The steering remote input on a Pioneer radio is usually labelled "W/R" (wired remote)

BMW X5 (E53) 2000 to 2006 9 inch fascia adapter (MATT BLACK)

Designed specifically for BMW X5 (E53) from 2000 to 2006 without navigation and standard audio, this fascia is designed for installation of the Pioneer 9” stereo. Built as a bespoke fit for vehicles in the application list, it adapts the dashboard aperture after removing the factory stereo to accept a universally mounted 4-screw head unit. This ensures compatibility with the Pioneer 9 inch system while retaining the original OEM-style appearance of the dashboard.

Pioneer SPH-PF97BT 9” Wi-Fi® Car Stereo with Apple CarPlay & Android Auto

The Pioneer SPH‑PF97BT is a premium 9″ multimedia car stereo designed for seamless in-dash integration with a wide range of vehicles, thanks to its Perfect Fit non-DIN chassis. Featuring both wireless and wired Apple CarPlay® and Android Auto™, it allows effortless access to apps like maps, calls, messages, and music via its large, responsive capacitive touchscreen. With built-in Wi-Fi®, Bluetooth®, and WebLink® 3.0, you get a connected driving experience without the clutter of cables.

Audio enthusiasts will appreciate the powerful 13-band EQ, FLAC support, subwoofer control, and high/low-pass filters for customised sound. Dual camera inputs, RCA AV in/out, and 3 pre-outs provide flexibility for system expansion, while accessories like a GPS antenna, external mic, and USB extension are included. With smart connectivity, modern aesthetics, and advanced audio control, the SPH‑PF97BT is an ideal upgrade for drivers who want both convenience and performance.

PLEASE NOTE

This radio is designed exclusively for use with 9" custom frame fascia panels. It mounts securely using a 4-screw system at the rear of the fascia panel. This unit cannot be installed as a standard 1-DIN or 2-DIN stereo and is not compatible with traditional 1 or 2-DIN fitting kits.

Main Features

Android Auto™

Automatically brings you useful information in simple cards to minimise distraction and keep you focused on the road.

Apple CarPlay®

A smarter, safer way to use your iPhone in the car for directions, calls, messaging, and music while staying focused.

Aux-in

Connect compatible devices easily for convenient audio playback.

Bluetooth®

Built-in wireless connectivity for hands-free calling and audio streaming, keeping you safe and legal.

Capacitive Touchscreen

Responsive multi-touch gestures including pinch-to-zoom, swipe, and scroll controls at your fingertips.

FLAC Support

Play lossless FLAC digital audio files at CD quality without conversion.

Vehicle Bus

Connect an optional adapter to display vehicle info like gauges, climate control, and parking assist (adapter sold separately).

Key Features

Installation Type:

• NON-DIN (Perfect Fit, not 1-DIN or 2-DIN)

Navigation:

• Via Android Auto™
• Via Apple CarPlay®

Screen:

• 9.0″ Capacitive Touchscreen

Apple CarPlay®:

• Wireless & Wired Connection

Android Auto™:

• Wireless & Wired Connection

Connectivity:

• Built-in Wi-Fi®
• WebLink® Smartphone Mirroring
• Bluetooth® Hands-Free & Audio Streaming
• Vehicle Bus Compatible

Customisation:

• Customisable Key & Display Illumination
• Multi-Colour Button Illumination

Audio Features

• 13-Band Graphic Equaliser
• High Pass Filter
• Low Pass Filter
• FLAC Audio Playback
• Subwoofer Control

Tuner Features

• RDS FM Radio

Connections

• Camera Inputs: 2 (Front & Rear)
• RCA AV Input: 1
• RCA Rear AV Output
• RCA Pre-Outs: 3 (Front, Rear, Subwoofer)
• AUX-In: 1 Rear AV Aux-In

Included Accessories

• External Bluetooth Microphone
• GPS Antenna
• USB Extension Cable

For more details and specification see the Pioneer website
