Honda CR-V (2012–2017) 9-inch Perfect Fit Stereo Kit – Type B Navigation, USB & Camera Retention

This InCarTec Honda CR-V 9-inch Perfect Fit stereo fitting kit allows selected 9-inch aftermarket stereos to be installed into Honda CR-V 2012-2017 models fitted with the dealer-fitted Type B navigation system.

The kit is designed to give a clean OEM-style dashboard finish while retaining key factory vehicle functions. It includes a 9-inch fascia adapter, Honda/Mazda aerial adapter to DIN plug, Type B navigation steering wheel control interface, USB retention harness and reverse camera retention interface.

This fitting kit is compatible with selected 9-inch Perfect Fit stereos including the Pioneer SPH-PF97BT, Alpine INE-AX809 and Kenwood DMX80AXS. These 9-inch Perfect Fit stereos are usually much shallower than conventional 2-DIN stereos, meaning less work is usually required behind the dashboard. This can help reduce installation time and is useful for both professional fitters and retail customers carrying out a stereo upgrade.

The supplied steering wheel control interface allows the original steering wheel audio buttons to operate a compatible aftermarket head unit. It also retains the original IMID display above the radio, including the original reverse camera display, and allows the IMID settings to be controlled using the steering wheel controls when the radio is switched off.

The USB retention harness allows the original Honda USB port to be retained when fitting a compatible aftermarket stereo that uses a rear USB input. The reverse camera retention interface is designed to retain the factory camera on European Honda CR-V 2012-2017 models with original 7-pin grey camera connectors.

These fitting kits are designed specifically for 9-inch Perfect Fit stereos, such as the Pioneer SPH-PF97BT (Sold Seperately)

Compatibility

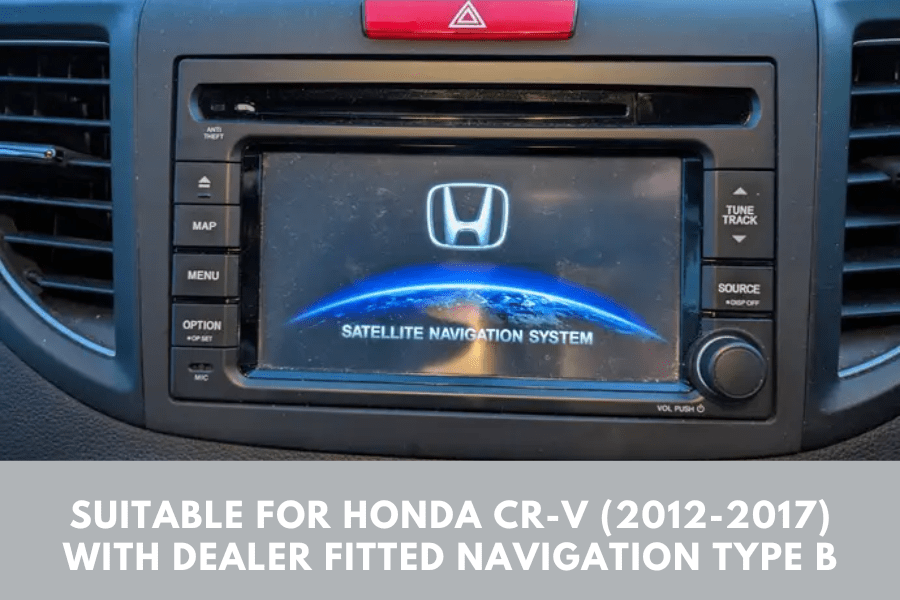

Suitable only for cars fitted with the dealer fitted navigation unit (Navigation Type B) as shown below:

This Fitting Kit Contains:

Honda (2009 Onwards) radio antenna adapter to din plug

This cable converts the cars existing aerial plug to an aftermarket DIN type used by most car radio manufacturers.

Honda and Mitsubishi USB retention cable

Allows retention of the original USB port in the car when fitting an after market radio. Used when you want to retain the original USB port on select Honda vehicles (radio utilizes rear USB input).

Honda CRV 2012 - 2017 Reverse Camera Retention Interface

The camera retention interface allows you retain the original OEM camera on European models of Honda CRV (2012-2017)

Suitable for original head units with 7 pin Grey camera connectors.

CRV 2012-2017 with Dealer Fit (Type B) Navigation Steering Wheel Control Interface

Car Audio Steering wheel interface and ISO cables allowing use of original buttons with a new aftermarket head-unit. Includes ISO power to connect the car to the aftermarket head-unit.

This interface also includes retention of the original IMID display above the radio, including the original reverse camera and the ability to control the IMID using the steering wheel controls when the radio is turned off.

Suitable for European models of the Honda Civic (FK) (2012-2017) and Honda CR-V (2012-2017) with original dealer fitted (Type B) navigation.

• Retains steering wheel controls
• Retains phone buttons
• Provides speed pulse output
• Retains factory reverse camera on original IMID displa
• Retains ability to adjust the settings on the IMID display using the steering wheel controls when the radio is off.

PLEASE NOTE: This interface includes PHONE commands for compatible Bluetooth head-units
