MAN TGE (2017-2023) 9-inch Perfect Fit Stereo Kit (Without Steering Wheel Controls)

This MAN TGE 9-inch Perfect Fit stereo fitting kit allows selected 9-inch aftermarket stereos to be installed into compatible MAN TGE 2017-2023 models without factory steering wheel audio controls.

The kit provides the main fitting parts required to replace the original basic factory radio with a compatible 9-inch Perfect Fit stereo. It includes a 10.1-inch fascia adapter, 10.1-to-9-inch step-down mounting plate, CANbus ignition interface with ISO connections and a Fakra to DIN aerial adapter with 12V phantom power feed.

This fitting kit is compatible with selected 9-inch Perfect Fit stereos including the Pioneer SPH-PF97BT, Alpine INE-AX809 and Kenwood DMX80AXS. These 9-inch Perfect Fit stereos are usually much shallower than conventional 2-DIN stereos, meaning less work is usually required behind the dashboard. This can help reduce installation time and is useful for both professional fitters and retail customers carrying out a stereo upgrade.

The 10.1-inch fascia adapter is supplied with a 10.1-to-9-inch step-down mounting plate, allowing a compatible 9-inch Perfect Fit head unit to sit neatly within the original dashboard opening. Built as a bespoke fit for vehicles in the application list, the fascia helps retain the original OEM-style appearance of the dashboard after the factory stereo has been removed.

The supplied CANbus ignition interface converts the vehicle’s original 52-pin quadlock connector to standard aftermarket ISO connections. It also provides an ignition feed 12V for the new aftermarket stereo, reducing the need to find a separate ignition power source from the fuse box.

The included Fakra to DIN aerial adapter converts the original antenna connector to a standard DIN connection and includes a 12V phantom power feed to power the original antenna amplifier.

PF-154 Compatiblity

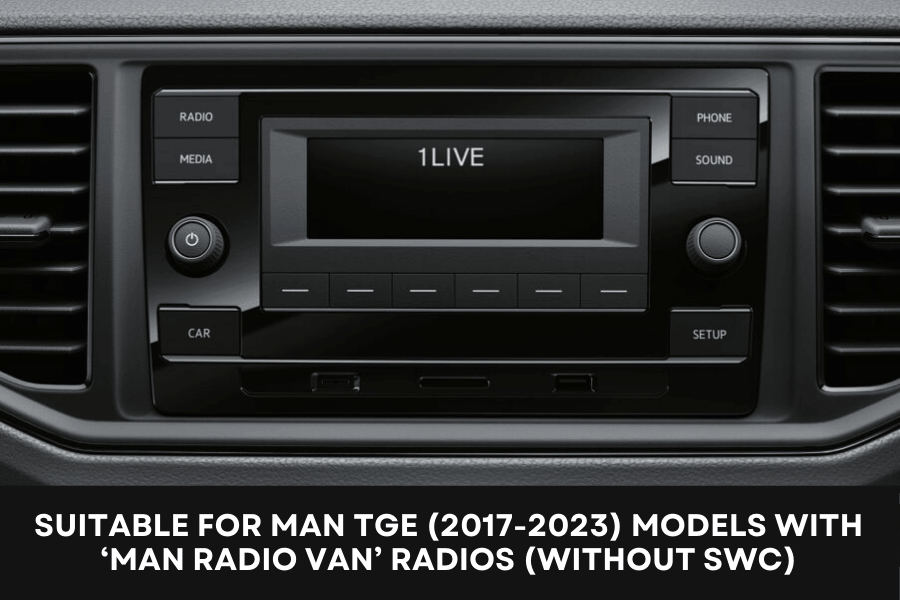

This 9-inch Perfect Fit fitting kit is designed for MAN TGE (2017-2023) vehicles without factory steering wheel audio controls.

This stereo upgrade fitting kit contains:

MAN TGE (2017-2023) ISO radio replacement CANbus interface (20-190-IGN)

Upgrade your MAN TGE (2017-2023) with our premium radio replacement ISO adapter cable, designed specifically for vehicles equipped with original basic radios. This innovative adapter seamlessly converts your car's original 52-pin quadlock connector to standard aftermarket ISO connectors, making stereo upgrades effortless.

One of the standout features of this adapter is its built-in CANbus interface. The integrated CANbus not only simplifies the connection but also provides an ignition power supply directly to your new aftermarket radio. This means you can say goodbye to the tedious task of hunting for an ignition power source from the fuse box—installing your new stereo has never been easier!

Additionally, our adapter cable includes an extension that allows re-connection of the original radio. This is particularly beneficial for making vital adjustments to your vehicle settings, such as changing the time and date or toggling vehicle stability control (VSC) on and off.

Fakra to Male DIN aerial antenna adapter cable (21-123)

This cable converts the original antenna connector in the car, known as a Fakra connector, to a standard aftermarket antenna connector, known as a DIN connector.

The adapter cable has a built in module which provides a phantom power feed to the original antenna in the car. A phantom power feed is a 12v power supply that is sent up the centre wire of the antenna cable, this powers the amplifier built into the original antenna. The antenna adapter cable has a loose wire which needs to be connected to the 12v antenna power output of the new aftermarket stereo.

The phantom power feed terminates in a junior timer receptacle terminal to make it easy to connect into the electric antenna turn on position of a standard ISO connector.

MAN TGE (2017-2023) 9/10.1 Inch fascia adapter panel
