High level brake light reverse camera for Mercedes Sprinter 2019–2024. Direct replacement for part number A9079055107, designed to replace the original housing while securely integrating the internal camera components. Provides OEM fit and reliable rear visibility. Suitable as an optional extra when upgrading the vehicle to an aftermarket double DIN stereo or using an aftermarket monitor.
PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing high level brake light on the vehicle.
Upgrade rear visibility on your Mercedes Sprinter with this vehicle-specific high-level reversing camera for selected VS30, W907 and W910 models from 2019–2024.
CVC-MBZ-05 is designed as an OEM-style replacement for Mercedes housing part number A9079055107, securely integrating the camera into the vehicle's high-level brake light assembly while maintaining a discreet factory-style appearance.
The elevated mounting position provides a useful view of the area behind the van when reversing, parking or manoeuvring and is particularly useful on commercial vans, campervans and motorhome conversions.
Designed specifically for selected Mercedes Sprinter VS30 / W907 / W910 models.
Designed as a replacement for Mercedes housing reference A9079055107 for a clean, integrated installation.
Elevated positioning gives a useful view behind the van when reversing and manoeuvring.
Available with CVBS or AHD video formats for compatible aftermarket stereos, monitors and camera interfaces.
0.1 lux minimum illumination with an approximate night vision distance of 25ft.
Designed for exterior vehicle installation with an IP68-rated, temperature-resistant housing.
Please Note: Vehicle and brake-light housing variations can exist within the listed production years. Compare the product photographs and dimensions with the existing high-level brake light before ordering.
The current InCarTec compatibility database lists Mercedes Sprinter W907/910 VS30 models from 2019–2023, while the product itself is listed as suitable for 2019–2024 applications.
If connecting the 4-pin aviation connection to a standard RCA/phono video input, an additional converter adapter may be required.
The current InCarTec vehicle compatibility database presently lists Sprinter W907/910 VS30 models from 2019–2023.
Always compare the original high-level brake light / camera housing with the product photographs and dimensions before ordering.
CVC-MBZ-05 is designed as an OEM-style replacement for Mercedes housing reference:
A9079055107
Always confirm the original housing shape and mounting arrangement before installation.
| Sensor | 1/2.7 FH8536H + C2399 |
|---|---|
| Video signal | CVBS / AHD optional |
| TV system | NTSC / PAL optional |
| CVBS effective pixels | 728(H) × 488(V) |
| AHD 1080P effective pixels | 1920(H) × 1080(V) |
| AHD 720P effective pixels | 1280(H) × 720(V) |
| Resolution | 700–1000 TVL |
| Minimum illumination | 0.1 lux |
| Night vision distance | Approximately 25ft |
| IP rating | IP68 |
| Current consumption | 150mA |
| Power supply | 12V standard |
| Voltage compatibility | 5V–18V |
| Connector | 4-pin aviation female |
| Operating temperature | -30°C to +75°C, RH95% max |
| Storage temperature | -40°C to +85°C, RH95% max |
| Material | PC plastic |
| Housing properties | High- and low-temperature resistant, flame retardant |
The housing is designed to replace the original Mercedes camera / high-level brake light housing while positioning the camera in the correct elevated location.

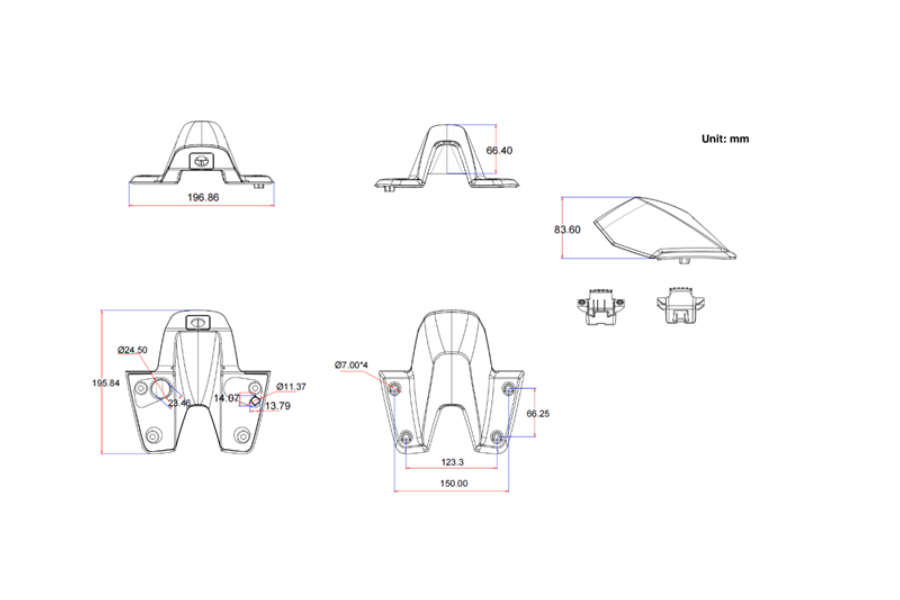

The dimension drawing shows an overall width of approximately 196.9mm, with additional mounting dimensions shown in the product image.
Compare both the dimensions and mounting points with the original housing before ordering.
The revised specification supports CVBS / AHD and NTSC / PAL configurations.
The stereo, monitor or interface must support the video format used by the supplied camera. An AHD output requires an AHD-compatible display.
CVBS is a conventional analogue video format supported by many aftermarket head units and reversing camera monitors.
This camera is suitable for installations using a compatible:
Always confirm that the display supports the video format used by the camera.
If connecting to a standard RCA/phono input, an additional 4-pin aviation-to-RCA converter may be required.
CVC-MBZ-05 is designed for selected Mercedes Sprinter VS30 / W907 / W910 models from the 2019–2024 production period.
Always compare the existing housing with the product photographs and dimensions before ordering.
The camera housing is designed as an OEM-style replacement for Mercedes reference A9079055107.
Yes. The unit is designed to replace the original Mercedes camera housing while integrating the reversing camera into the high-level rear assembly.
Yes. It can be used with a compatible aftermarket stereo that has a reversing camera input and supports the camera's video format.
Yes. The camera can be used with a compatible reversing camera or commercial vehicle monitor provided it supports the correct video format.
AHD supports higher-resolution video when paired with an AHD-compatible display. CVBS is a conventional analogue video format supported by many aftermarket stereos and monitors.
The revised specification gives an approximate night vision distance of 25ft, with minimum illumination rated at 0.1 lux.
Contact InCarTec with your Mercedes Sprinter model year, a photograph of the original high-level housing and details of the stereo or monitor you plan to use.
Contact InCarTecBrand: InCarTec
Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Mercedes - Sprinter (W907/910) VS30 (2019 - 2023)
