Renault Trafic, Nissan NV300, Vauxhall Vivaro 9-inch Perfect Fit Stereo Kit (Factory Nav Systems)

This 9-inch Perfect Fit stereo fitting kit allows selected 9-inch aftermarket stereos to be installed into compatible Renault Trafic, Nissan NV300, Fiat Talento, Mitsubishi Express and Vauxhall / Opel Vivaro models with factory 7-inch touchscreen navigation systems.

The kit is designed for vehicles originally equipped with navigation systems such as the Fiat Talento 7" Touch Radio Nav or Vauxhall Navi 50 IntelliLink. It provides the main fitting parts required to replace the original factory navigation radio with a compatible 9-inch Perfect Fit stereo while retaining the factory steering wheel audio controls.

This fitting kit is compatible with selected 9-inch Perfect Fit stereos including the Pioneer SPH-PF97BT, Alpine INE-AX809 and Kenwood DMX80AXS. These 9-inch Perfect Fit stereos are usually much shallower than conventional 2-DIN stereos, meaning less work is usually required behind the dashboard. This can help reduce installation time and is useful for both professional fitters and retail customers carrying out a stereo upgrade.

The matt black fascia adapter is built as a bespoke fit for the vehicles in the application list and adapts the dashboard aperture to accept a universally mounted 4-screw 9-inch head unit. This helps provide a clean OEM-style dashboard finish after the factory radio has been removed.

The supplied navigation-compatible steering wheel control interface is designed for vehicles with an original fit navigation unit. It adapts from the white vehicle connector to standard aftermarket ISO connections and allows compatible steering wheel functions to operate the new stereo, including volume, seek / track, source and telephone commands where supported.

The included Fakra to DIN aerial adapter converts the original Fakra antenna connector to a standard DIN connection and provides a 12V phantom power feed to the original antenna amplifier.

Important Notes:

• On some late vehicles around 2018 and newer, a separate ignition live feed may need to be manually wired as these vehicles might not have it in the original radio plug.

• Some vehicles with Stop‑Start feature will require an interface to be installed inline with the power ISO plug of the new stereo. The interface allows the unit to stay powered when the vehicle engine shuts down and restarts. If you are experiencing this with your new installation, you will need a 10‑603 adapter in addition to the fitting kit.

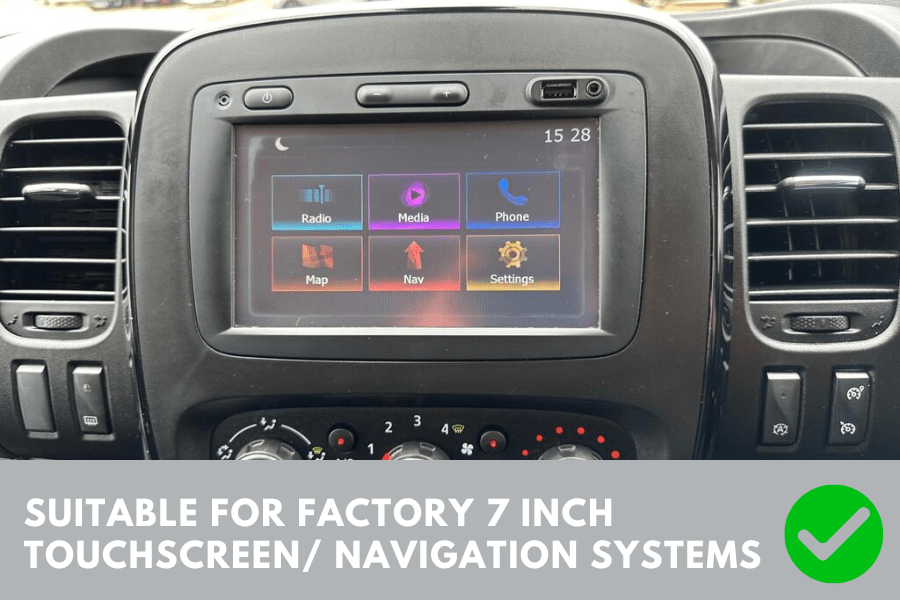

This kit is only compatible with vehicles equipped with factory 7 Inch Touchscreen navigation systems.

This head unit fitting kit includes:
