VW Double DIN & Floating Screen Stereo Fitting Kit with SWC/ Parking Display (WHITE MFD DISPLAY)

Volkswagen Double DIN and Floating-Screen Stereo Upgrade Fitting Kit

Upgrade the original stereo in selected Volkswagen vehicles while retaining important factory controls and vehicle information.

This complete Volkswagen stereo fitting kit allows a compatible aftermarket Double DIN stereo or Single DIN floating-screen head unit to be installed in place of the original factory radio.

It is designed for selected vehicles equipped with a white MFD instrument cluster and an original RCD310, RCD500, RCD510, RNS315 or RNS510 head unit.

The kit is also compatible with selected vehicles fitted with the factory Fender amplified audio system.

Vehicle Compatibility

Suitable only for selected models with a white MFD instrument cluster:

• Volkswagen EOS: 2009–2016
• Volkswagen Golf: 2008–2013
• Volkswagen Multivan: 2010–2015
• Volkswagen Passat: 2010–2015
• Volkswagen Polo: 2009–2014
• Volkswagen Scirocco: 2011–2015
• Volkswagen Sharan: 2010–2015
• Volkswagen Tiguan: 2011–2015
• Volkswagen Touran: 2010–2015

Compatible Factory Radios

Designed for selected vehicles originally fitted with one of the following Volkswagen factory head units:

• RCD310
• RCD500
• RCD510
• RNS315 factory satellite-navigation system
• RNS510 factory satellite-navigation system

Stereo Upgrade Fitting Kit Includes

Male Fakra to female SMB DAB antenna adapter cable

If your factory stereo has DAB as standard you can use this cable to convert the original (Fakra DAB) antenna connector in a car to a female SMB, allowing you to retain DAB signal on the new Pioneer head unit.

Double Fakra to Male DIN aerial antenna adapter cable (With 12v phantom power)

This cable converts the original antenna connector in the car, known as a Double Fakra connector, to a standard aftermarket antenna connector, known as a DIN connector.

The adapter cable has a built in module which provides a phantom power feed to the original antenna in the car. A phantom power feed is a 12v power supply that is sent up the centre wire of the antenna cable, this powers the amplifier built into the original antenna. The antenna adapter cable has a loose wire which needs to be connected to the 12v antenna power output of the new aftermarket stereo.

The phantom power feed terminates in a junior timer receptacle terminal to make it easy to connect into the electric antenna turn on position of a standard ISO connector.

VW Steering Wheel Control/ Infoadapter interface

This VW Steering Wheel Control & Infoadapter Interface (29-CTUVW01) is designed to retain key factory features when installing an aftermarket head unit in Volkswagen vehicles equipped with a white MFD (Multi-Function Display). It preserves OEM steering wheel audio controls for safe and convenient operation, while maintaining a factory-style integration between the vehicle and the new stereo system. All retained functions are dependent on the vehicle being originally equipped with these features on the factory radio system.

In addition to steering wheel control retention, this interface allows vehicle information such as climate control status, parking sensor graphics and heated seat information to be displayed on any aftermarket head unit with a rear camera input, provided these features were available on the original factory radio. With a plug-and-play design (when used with the correct patch lead), it avoids cutting factory wiring and supports compatibility with leading head unit brands, making it ideal for professional installations and OEM-quality upgrades.

Product Features

• Retains Steering Wheel Controls
• Retains Optical Parking Sensor Display
• Retains Climate Control Visualisation

Compatibility Notes

• Only suitable for Models with White MFD display
• Please check the connections in the vehicle match the harness you are purchasing

Camera Integration

When integrating a camera the software box used on this infoadapter is preset to not show a reverse image.

If after market Camera does not display on head unit.

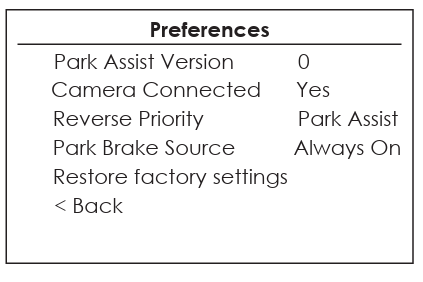

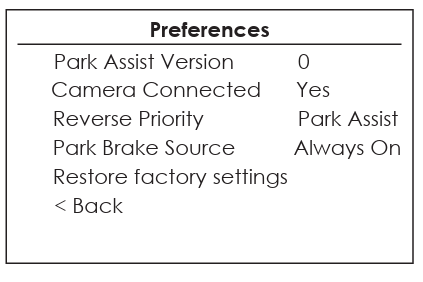

1. Go into the menu settings by pressing and holding the speech button for 2 seconds
2. Select preferences
3. Camera connected (change to yes)
4. Reverse Priority (select cam or park assist)

Universal head-unit patch lead for 29-CT series steering wheel control interface

Universal patch lead for 29-CT series steering controls. Suitable for Alpine, Clarion, JVC, Kenwood,  Pioneer, Sony and Chinese head-units that are steering wheel remote ready.

This cable plugs into the Steering wheel control box and into either the 3.5mm socket or single wire on the back of the head-units.
Follow instruction to cut loops if needed.

Universal Single DIN pocket for Double DIN car stereo fascia (For side fixing bracket fascia kits)

Universal pocket to enable you to fit a single DIN radio into a Double DIN kit

This pocket is suitable for fascia kits with side fixing brackets

COLOUR: MATT BLACK
